Beckhoff EL7047 | Beckhoff Ethercat Terminals

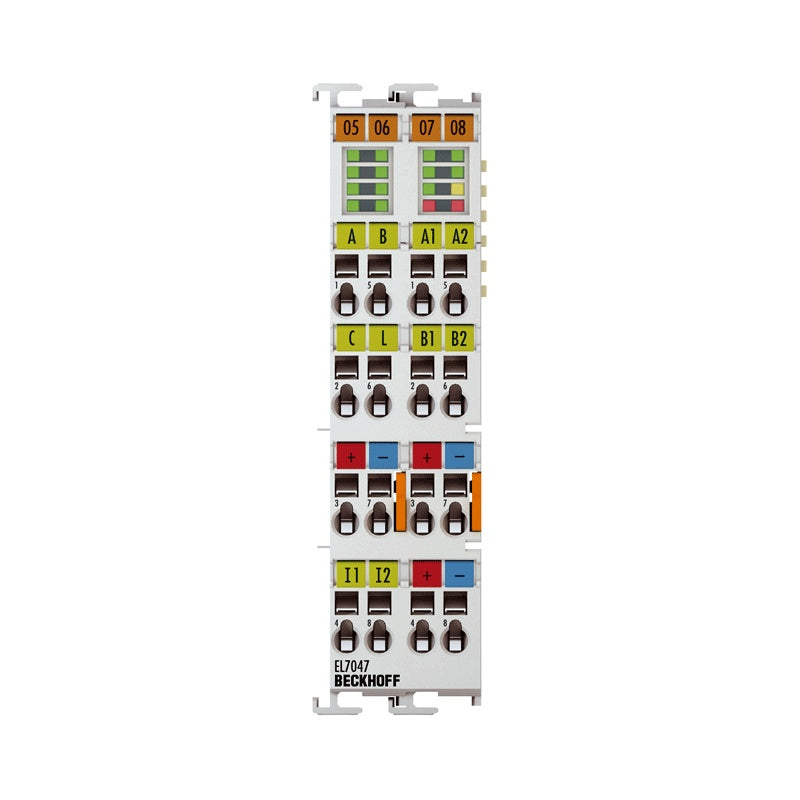

EL7047 | EtherCAT Terminal, 1-channel motion interface, stepper motor, 48 V DC, 5 A, vector control, with incremental encoder

The EL7047 EtherCAT Terminal is intended for the direct connection of stepper Motors in the mid power range up to 5 A an a voltage range from 8…48 V. The...

Technical Specifications

EL7047 Technology compact drive technology Connection technology direct motor connection + feedback Number of inputs 2 x end position, 1 x encoder Load type 2-phase stepper motor (uni-/bipolar) Number of outputs 1 x stepper motor, 1 x motor brake Supply voltage electronics 24 V DC (via power contacts) Supply voltage power 8…48 V DC (external) Output current max. 5.0 A Performance increase yes, through ZB8610 fan cartridge Output current with ZB8610 max. 6.5 A Step frequency configurable up to 16,000 full steps/s Step pattern 64-fold micro stepping Current controller frequency approx. 30 kHz Resolution approx. 5000 positions in typ. applications (per revolution) Encoder input signal 5…24 V DC, typ. 5 mA, single-ended Encoder connection A, B, C, gate/latch Input frequency max. 400,000 increments/s (with 4-fold evaluation) Current consumption power contacts typ. 50 mA Current consumption E-

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
