Beckhoff EL7031 | Beckhoff Ethercat Terminals

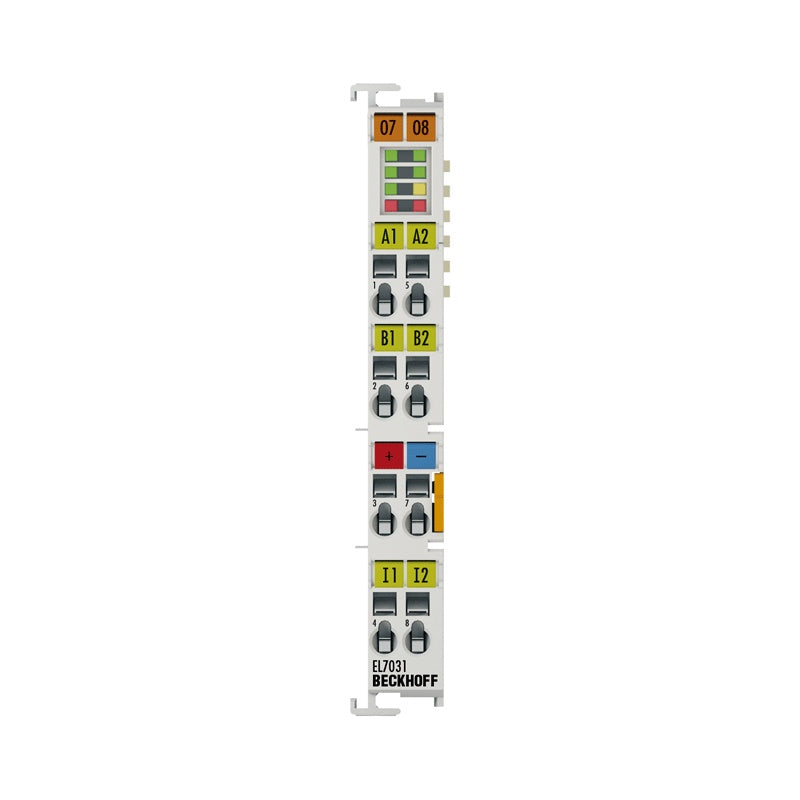

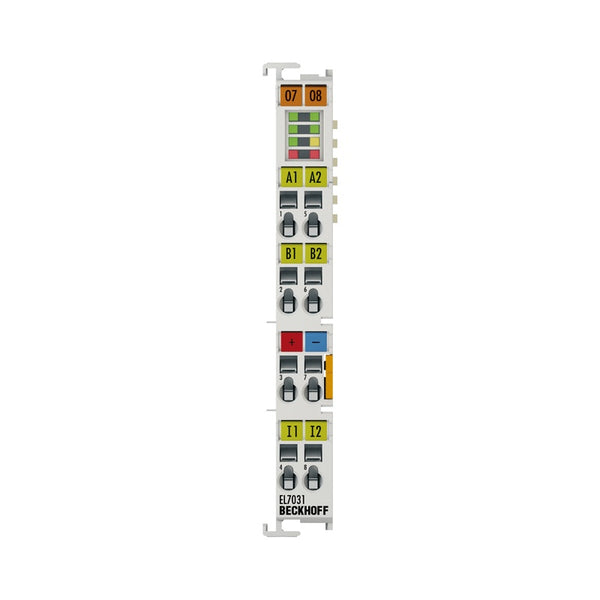

EL7031 | EtherCAT Terminal, 1-channel motion interface, stepper motor, 24 V DC, 1.5 A

The EL7031 EtherCAT Terminal is intended for the direct connection of stepper Motors in the low power range up to 1.5 A. The compact stepper motor output...

Technical Specifications

EL7031 Technology compact drive technology Connection technology direct motor connection Number of inputs 2 x end position Load type 2-phase stepper motor (uni-/bipolar) Number of channels 1 Number of outputs 1 x stepper motor Supply voltage electronics 24 V DC (via power contacts) Supply voltage power 24 V DC (internally via power contacts) Output current max. 1.5 A Step frequency configurable up to 8000 full steps/s Step pattern 64-fold micro stepping Current controller frequency approx. 25 kHz Resolution approx. 5000 positions in typ. applications (per revolution) Current consumption power contacts typ. 30 mA + motor current Current consumption E-bus typ. 120 mA Distributed clocks yes Special features travel distance control Electrical isolation 500 V (E-bus/field potential) Relative humidity 95%, no condensation Weight approx. 50 g Operating temperature 0…55°C Storage temperature -25

Availability: regular delivery
