Beckhoff EL6900 | Beckhoff Ethercat Terminals

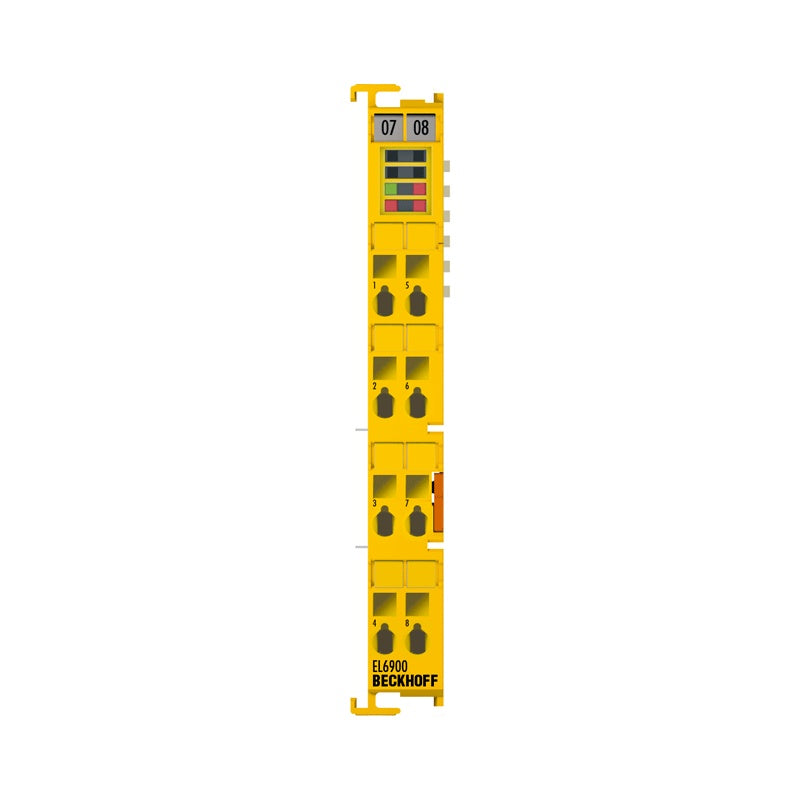

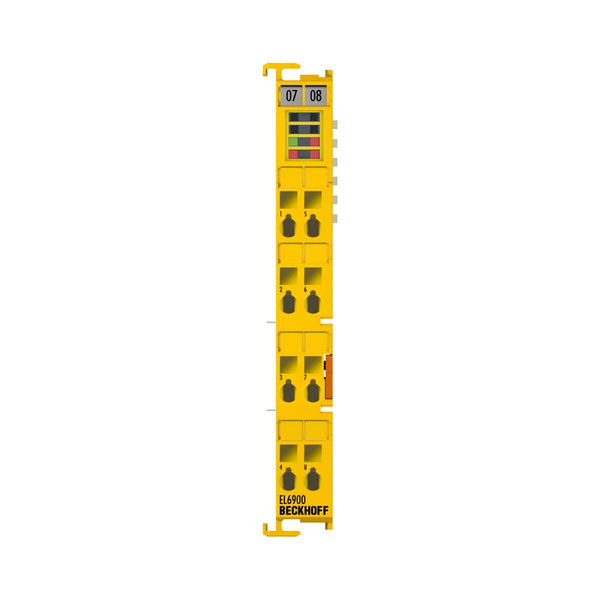

EL6900 | EtherCAT Terminal communication interface, TwinSAFE Logic

The EL6900 TwinSAFE component is a dedicated safety controller. It is designed for the realization of safety-oriented applications on the basis of Boolean ...

Technical Specifications

EL6900 Specification link unit between safe input and output signals Protocol TwinSAFE/Safety over EtherCAT Cycle time approx. 500 µs/according to project size Fault response time ≤ watchdog time (parameterizable) Current consumption power contacts – Current consumption E-bus typ. 188 mA Installation position horizontal Safety standard DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) Weight approx. 50 g Protection rating IP20 Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Technical data Housing data To top Housing data EL-12-8pin Design form compact terminal housing with signal LEDs Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means of double slot and key connection Marking labeling of the BZxxxx series Wiring solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation b

Availability: regular delivery
