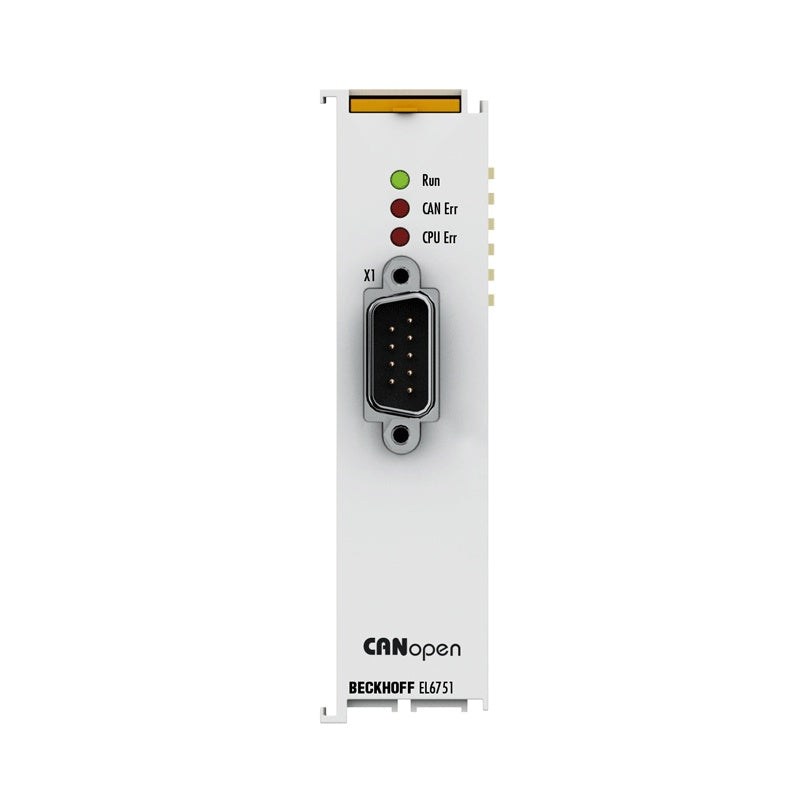

Beckhoff EL6751-0000 | Beckhoff Ethercat Terminals

EL6751 | EtherCAT Terminal, 1-channel communication interface, CANopen, master/slave

The Terminal enables within an EtherCAT Terminal network the integration of any CANopen devices and can be serving as a master. In addition, general CAN messages...

Technical Specifications

EL6751 Technology CANopen master/slave terminal Number of channels 1 Fieldbus CANopen Data transfer rates 10, 20, 50, 100, 125, 250, 500, 800, 1000 kbaud Interfaces D-sub connector, 9-pin according to CANopen specification, galvanically decoupled Communication CANopen network master and CANopen manager, optionally CANopen slave Hardware diagnostics status LEDs Current consumption E-bus typ. 230 mA Special features status LEDs, CANopen network master, CANopen Manager, supports RAW-CAN Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx, DNV Ex marking ATEX: II 3 G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc Tech

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
