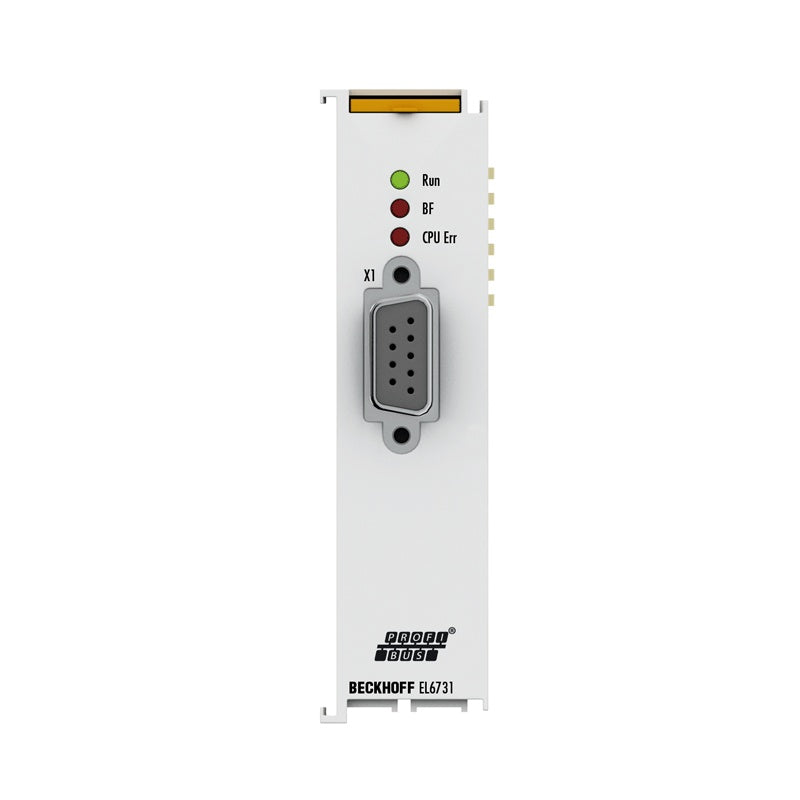

Beckhoff EL6731 | Beckhoff Ethercat Terminals

EL6731 | EtherCAT Terminal, 1-channel communication interface, PROFIBUS, master/slave

The PROFIBUS master terminal EL6731 supports the PROFIBUS protocol with all its features. Within an EtherCAT Terminal network, it enables the integration...

Technical Specifications

EL6731 Technology PROFIBUS master/slave terminal Number of channels 1 Cycle time differing DP cycle times per slave are possible using the CDL concept Fieldbus PROFIBUS DP (standard), PROFIBUS DP-V1 (Cl. 1+2: acyclic services, alarms), DP-V2, PROFIBUS MC (equidistant) Data transfer rates 9.6 kbaud…12 Mbaud Interfaces 1 x D-sub socket, 9-pin, galvanically decoupled Bus device max. 125 slaves with up to 244 bytes input, output, parameter, configuration or diagnostic data per slave Hardware diagnostics status LEDs Distributed clocks yes Bit width in the process image total max.: 1.4 kbyte input and 1.4 kbyte output data Current consumption power contacts – Current consumption E-bus typ. 200 mA Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/

Availability: regular delivery
