Beckhoff EL6695 | Beckhoff Ethercat Terminals

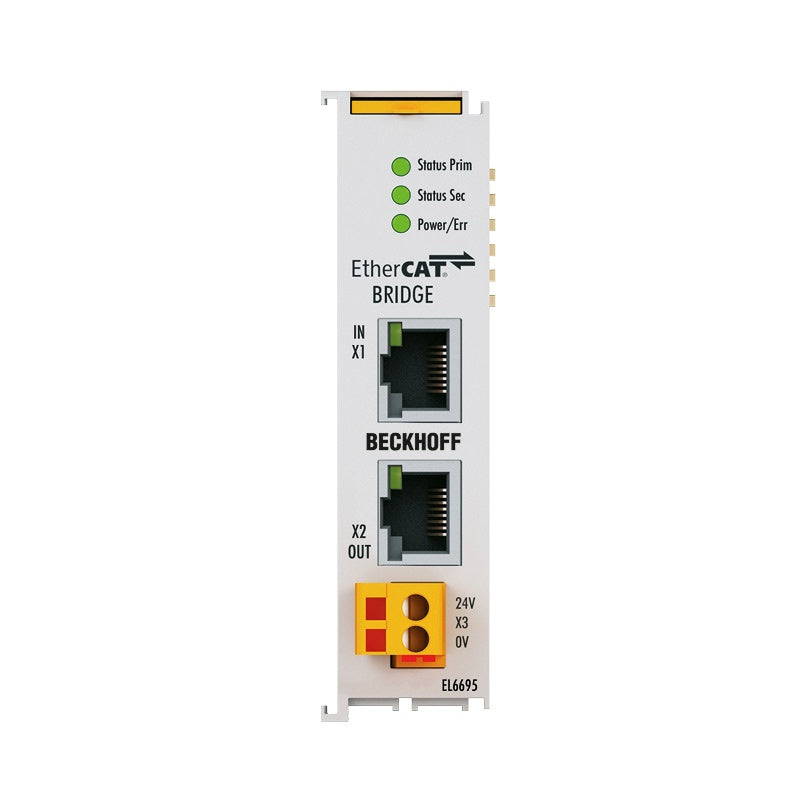

EL6695 | EtherCAT Terminal, communication interface, EtherCAT bridge, extended functions

The EL6695 EtherCAT bridge terminal enables real-time data exchange between EtherCAT Terminal strands with different masters. Asynchronous communication...

Technical Specifications

EL6695 Technology primary side: E-bus (terminal strand), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, In/Out Number of ports 2 x EtherCAT input/output Function EtherCAT distributed clock synchronization, data exchange Cable length 100 m 100BASE-TX, secondary port Hardware diagnostics status LEDs Power supply primary: via the E-bus, secondary: via connector, 24 V Distributed clocks yes Electrical isolation 500 V (E-bus/secondary side) Current consumption primary: E-bus 400 mA; secondary: 70 mA/24 V Bit width in the process image max. 3 kbyte per direction (dependent on the EtherCAT master, TwinCAT currently max. 1400 byte) Special features usable in TwinCAT as a reference clock, synchronous data exchange, flexible PDO mapping, supports AoE, EoE, FoE, VoE Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock
