Beckhoff EL6692 | Beckhoff Ethercat Terminals

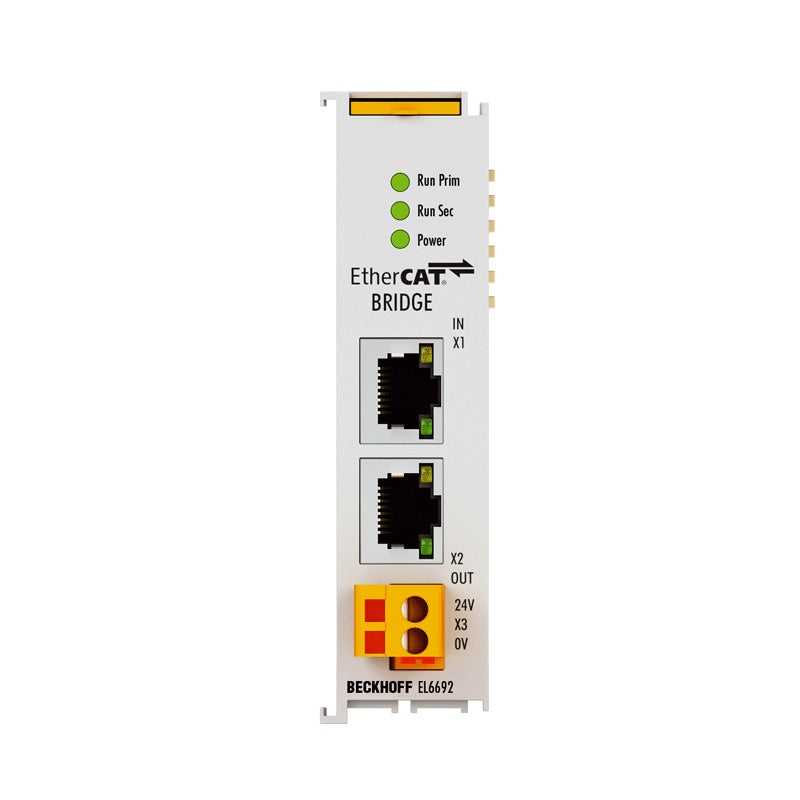

EL6692 | EtherCAT Terminal, communication interface, EtherCAT bridge

The EtherCAT bridge terminal EL6692 enables real-time data exchange between EtherCAT strands with different masters. It also enables synchronization of...

Technical Specifications

EL6692 Technology primary side: E-bus (terminal strand), secondary side: 2 x 100 Mbit/s Ethernet, RJ45, In/Out Number of ports 2 x EtherCAT input/output Function EtherCAT distributed clock synchronization, data exchange Cable length 100 m 100BASE-TX, secondary port Hardware diagnostics status LEDs Power supply primary: via the E-bus, secondary: via connector Distributed clocks yes Electrical isolation 500 V (E-bus/secondary side) Current consumption E-bus: 120 mA; external: 60 mA/24 V (see documentation) Bit width in the process image 16 bit SYNC input + IO input/output, max. 480 bytes in each direction Current consumption power contacts – Current consumption E-bus 120 mA (E-bus), typ. 60 mA/24 V (external) Special features usable in TwinCAT as a reference clock, supports ADS over EtherCAT (AoE) Weight approx. 75 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative hu
