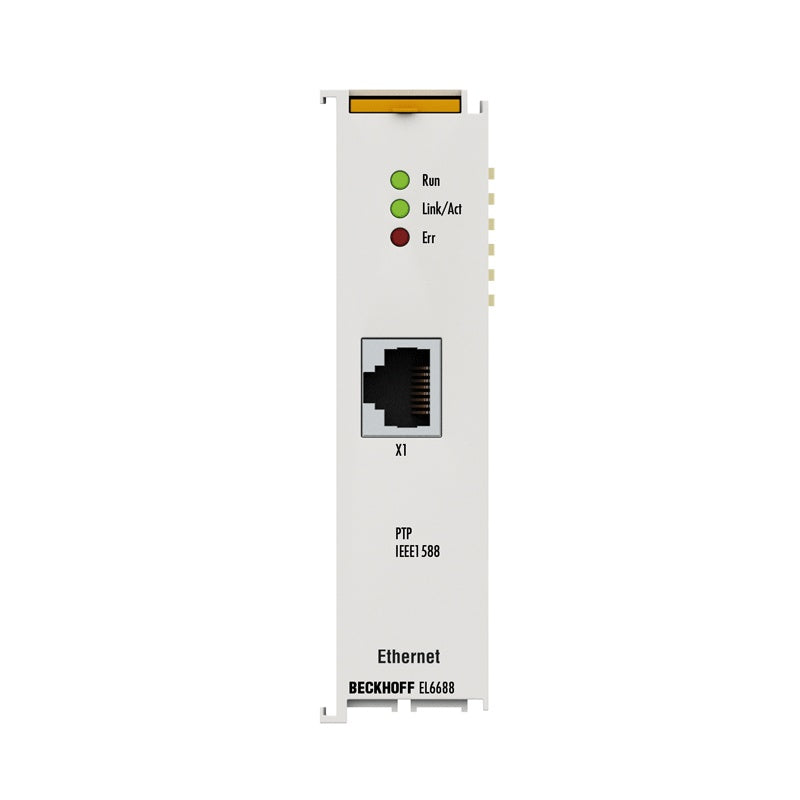

Beckhoff EL6688 | Beckhoff Ethercat Terminals

EL6688 | EtherCAT Terminal, 1-port communication interface, IEEE 1588/PTP, master/slave

The EL6688 EtherCAT Terminal presents itself as a device in the IEEE 1588 synchronization system with support for PTPv1 (IEEE 1588-2002) and PTPv2 (IEEE...

Technical Specifications

EL6688 Number of ports 1 Bus system Ethernet (IEEE 802.3) Ethernet interface 10BASE-T/100BASE-TX Ethernet with 1 x RJ45 Data transfer rates 10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings Cable length up to 100 m twisted pair Hardware diagnostics status LEDs Power supply via the E-bus Distributed clocks yes Electrical isolation 500 V (E-bus/Ethernet) Protocol PTPv1 (IEEE 1588-2002), PTPv2 (IEEE 1588-2008) Configuration no Current consumption power contacts – Current consumption E-bus typ. 310 mA Special features usable in TwinCAT as a reference clock Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos

Availability: regular delivery
