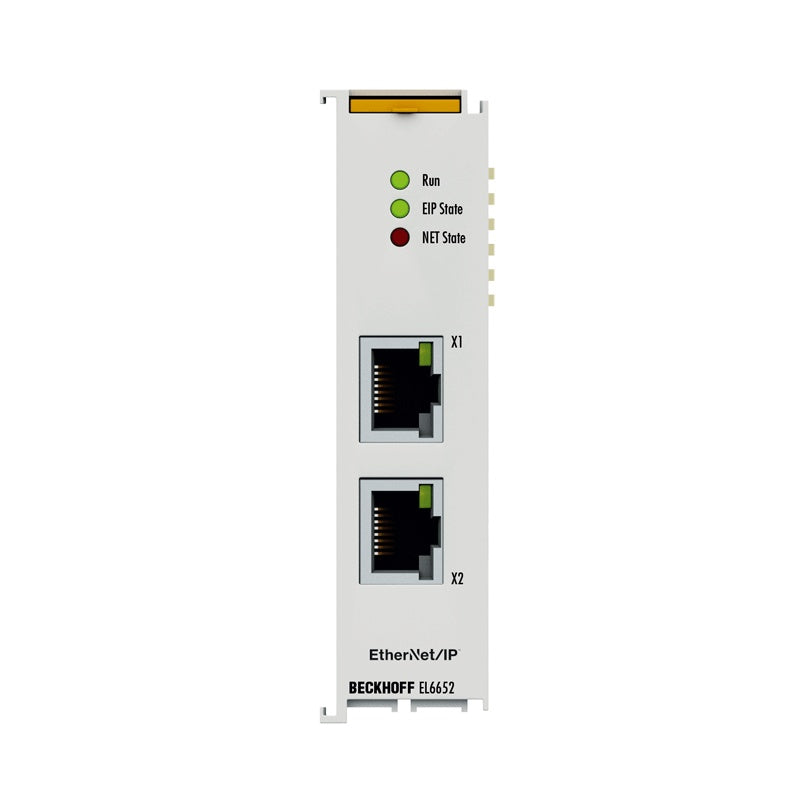

EL6652-0010 | EtherCAT Terminal, 2-port communication interface, EtherNet/IP™, adapter

The EL6652-0010 EtherNet/IP™ adapter terminal has a switched 2-port Ethernet connection and can thus be operated in a line with further EtherNet/IP™ nodes...

Technical Specifications

EL6652-0010 Technology EtherNet/IP™ adapter terminal Number of channels 1 Number of ports 2 (switched) Max. process data size 1 kbyte input/1 kbyte output data Ethernet interface 100BASE-TX Ethernet with 2 x RJ45 Cable length up to 100 m twisted pair Hardware diagnostics status LEDs Power supply via the E-bus Electrical isolation 500 V (E-bus/Ethernet) Protocol EtherNet/IP™ Configuration via EtherCAT master Current consumption E-bus typ. 400 mA Special features multicast/unicast connection Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/see documentation Approvals/markings CE, UL Technical data Housing data To top Housing data EL-24 Design form compact term

Availability: regular delivery
