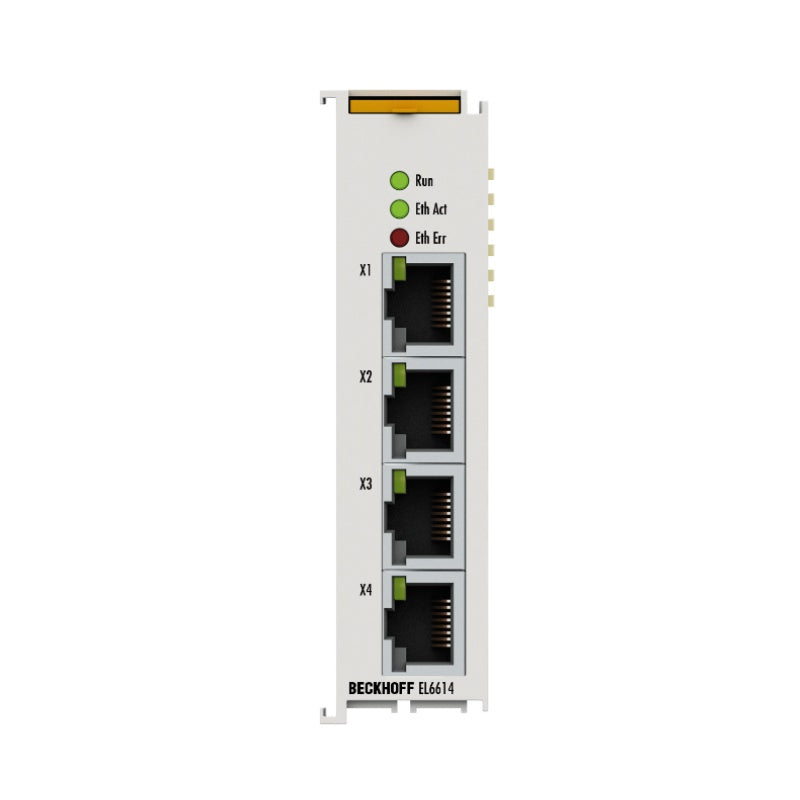

Beckhoff EL6614 | Beckhoff Ethercat Terminals

EL6614 | EtherCAT Terminal, 4-port communication interface, Ethernet switch port

The EL6614 Ethernet switch port terminal is designed for the decentralized connection of Ethernet devices to the EtherCAT Terminal network. The EtherCAT system...

Technical Specifications

EL6614 Number of ports 4 Bus system all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode Ethernet interface 10BASE-T/100BASE-TX Ethernet with 4 x RJ45 Data transfer rates 10/100 Mbit/s, IEEE 802.3u auto-negotiation, half or full duplex at 10 and 100 Mbit/s possible, automatic settings Cable length up to 100 m twisted pair Hardware diagnostics status LEDs Power supply via the E-bus Distributed clocks – Electrical isolation 500 V (E-bus/Ethernet) Protocol all Ethernet (IEEE 802.3)-based protocols, store and forward switching mode Configuration no Current consumption power contacts – Current consumption E-bus typ. 310 mA Special features support of RT Ethernet, publisher/subscriber, DHCP/BootP server Weight approx. 95 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2

Availability: regular delivery
