Beckhoff EL6022 | Beckhoff Ethercat Terminals

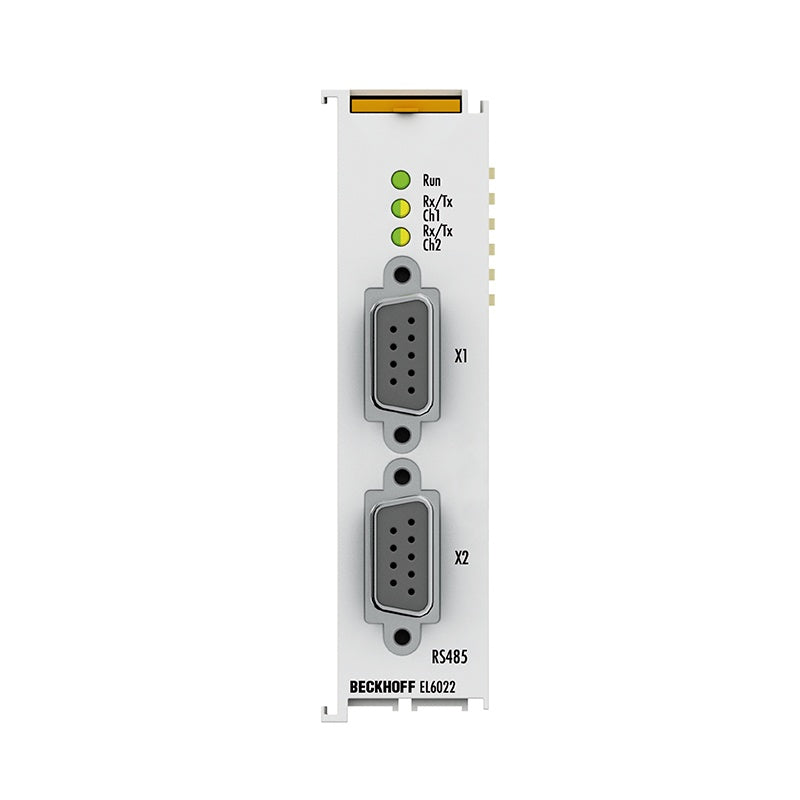

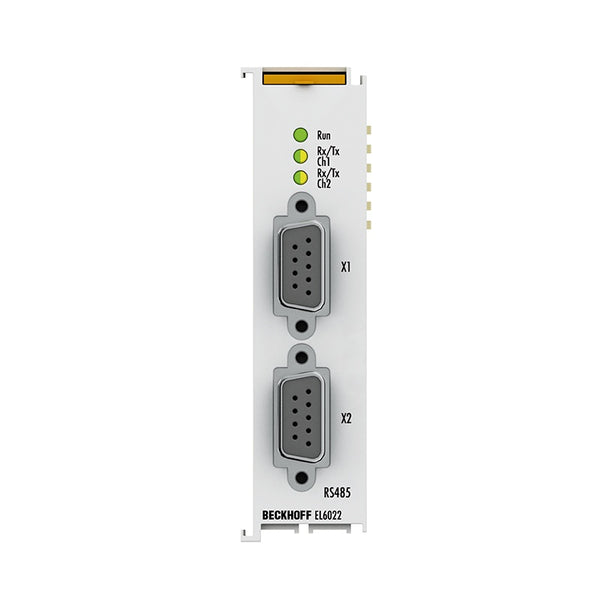

EL6022 | EtherCAT Terminal, 2-channel communication interface, serial, RS422/RS485, D-sub

The EL6022 serial interface enables the connection of devices with two RS422/RS485 interfaces. The devices connected to the EL6022 EtherCAT Terminal communicate...

Technical Specifications

EL6022 Connection technology D-sub, 9-pin Data transfer channels 2 Data transfer rates 300…115,200 baud; default: 9600 baud, 8 data bits, no parity and one stop bit Interfaces 2 x RS422/RS485 Cable impedance 120 Ω Cable length approx. 1000 m twisted pair Providing external supply 2 x max. 5 V/20 mA, out of E-bus supply, short-circuit proof Power supply via the E-bus Distributed clocks – Electrical isolation 500 V (E-bus/signal voltage) Data buffer 864 bytes receive buffer, 128 bytes transmit buffer Configuration no address setting, configuration via the controller Current consumption power contacts – Current consumption E-bus typ. 270 mA Special features 2 x 5 V/20 mA for external supply Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emi
