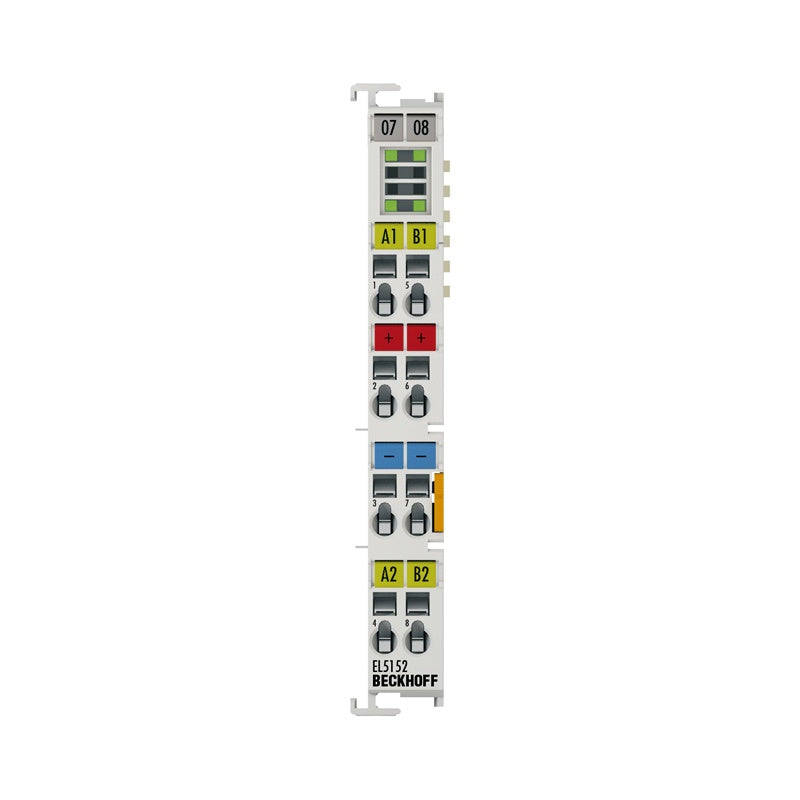

EL5152 | EtherCAT Terminal, 2-channel encoder interface, incremental, 24 V DC HTL, 100 kHz

The EL5152 EtherCAT Terminal is an interface for the direct connection of two incremental encoders (24-V-HTL) with A and B track. As an alternative, the...

Technical Specifications

EL5152 Technology incremental encoder interface, HTL 24 V DC Number of channels 2 Encoder connection 2 x A, B: 24 V, single-ended connection, EN 61131-2, type 1, “0”: 15 V DC, typ. 5 mA Encoder operating voltage 24 V DC (-15%/+20%), (generated from the 24 V DC power contacts) Counter 2 x 16/32 bit switchable Cut-off frequency 400,000 increments/s (with 4-fold evaluation), corresponding to 100 kHz Quadrature decoder 4-fold evaluation Distributed clocks yes Nominal voltage 24 V DC (-15%/+20%) Resolution 1/256 bit microincrements Current consumption power contacts typ. 100 mA + load Current consumption E-bus typ. 130 mA Electrical isolation 500 V (E-bus/field potential) Special features microincrements, period duration and frequency measurement, up/down counters Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration
