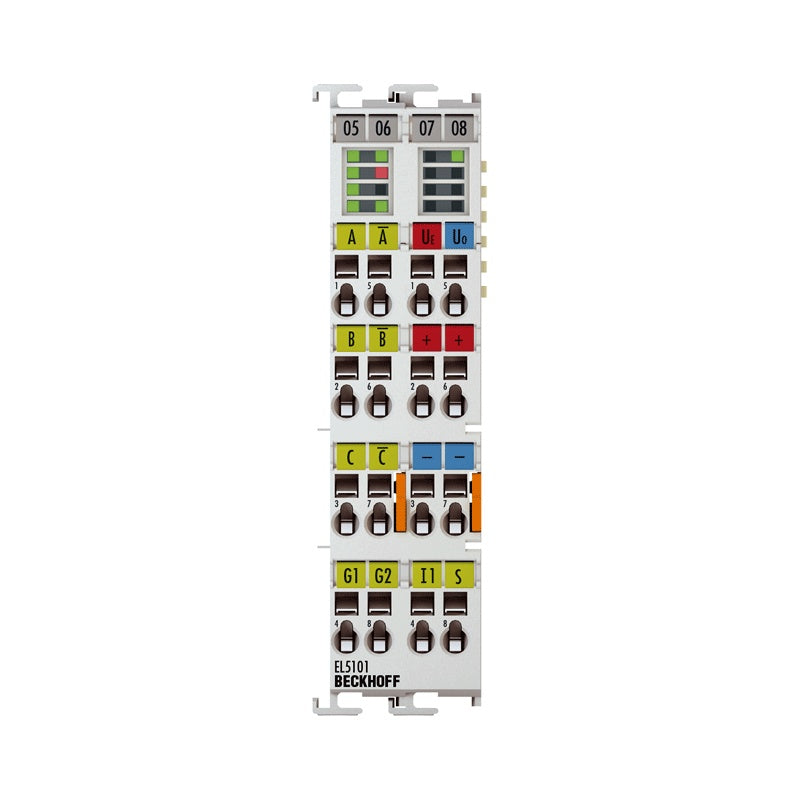

Beckhoff EL5101 | Beckhoff Ethercat Terminals

EL5101 | EtherCAT Terminal, 1-channel encoder interface, incremental, 5 V DC (DIFF RS422, TTL), 1 MHz

The EL5101 EtherCAT Terminal is an interface for the direct connection of incremental encoders with differential signals (RS422) or TTL single ended signals...

Technical Specifications

EL5101 Technology incremental encoder interface, differential (RS422), single-ended (TTL), counter, pulse generator Number of channels 1 Encoder connection 1 x A, B, C: differential inputs (RS422): A, A̅ (inv), B, B̅ (inv), C,C̅ (inv), single-ended connection (TTL): A, B, C, counter, pulse generator: A, B Additional inputs status input 5 V DC, gate/latch input 24 V DC Encoder operating voltage 5 V DC/max. 0.5 A (generated from the 24 V DC power contacts) Counter 1 x 16/32 bit switchable Cut-off frequency 4 million increments/s (with 4-fold evaluation), corresponding to 1 MHz Quadrature decoder 4-fold evaluation Distributed clocks yes Nominal voltage 24 V DC (-15%/+20%) Resolution 1/256 bit microincrements Current consumption power contacts typ. 100 mA + load Current consumption E-bus typ. 130 mA Electrical isolation 500 V (E-bus/field potential) Special features wire breakage detection,

Availability: regular delivery
