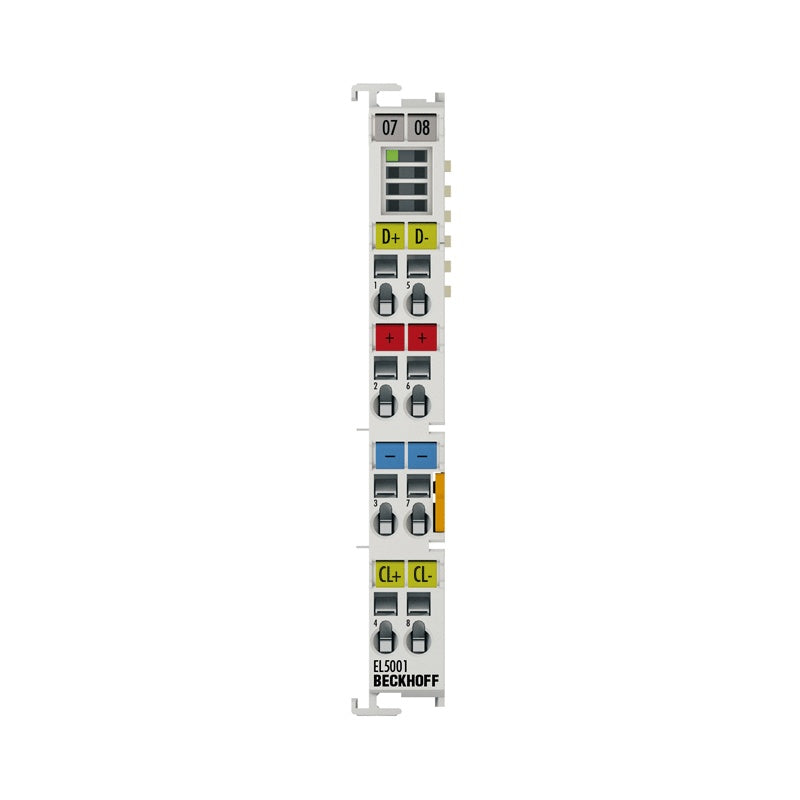

EL5001 | EtherCAT Terminal, 1-channel encoder interface, SSI

The EL5001 EtherCAT Terminal is an SSI master and enables the direct connection of an absolute encoder with SSI (synchronous serial interface). Both singleturn...

Technical Specifications

EL5001 Technology SSI encoder interface Number of channels 1 Encoder connection D+, D-, Cl+, Cl- Encoder operating voltage 24 V DC (generated from the power contacts) Distributed clocks yes Signal output (pulse) difference signal (RS422) Signal input (data) difference signal (RS422) Power supply 24 V via power contacts Data transfer rates variable up to 1 MHz, 250 kHz default Serial input variable up to 32 bit, 24 bit default Data direction read Current consumption power contacts typ. 20 mA + load Current consumption E-bus typ. 120 mA Electrical isolation 500 V (E-bus/field potential) Special features adjustable baud rate, coding and data length, power fail bit activatable Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms
