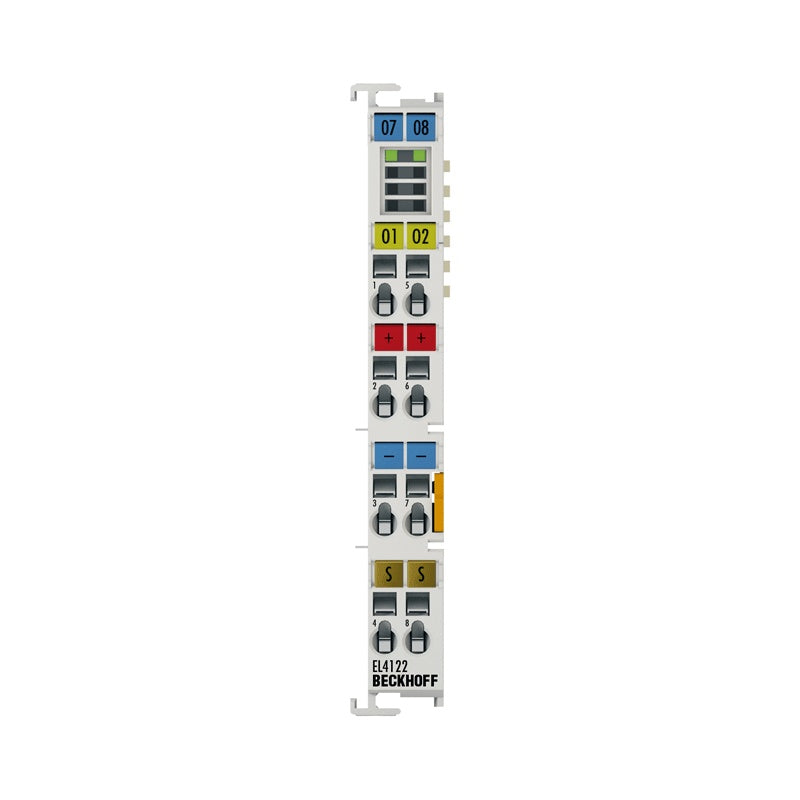

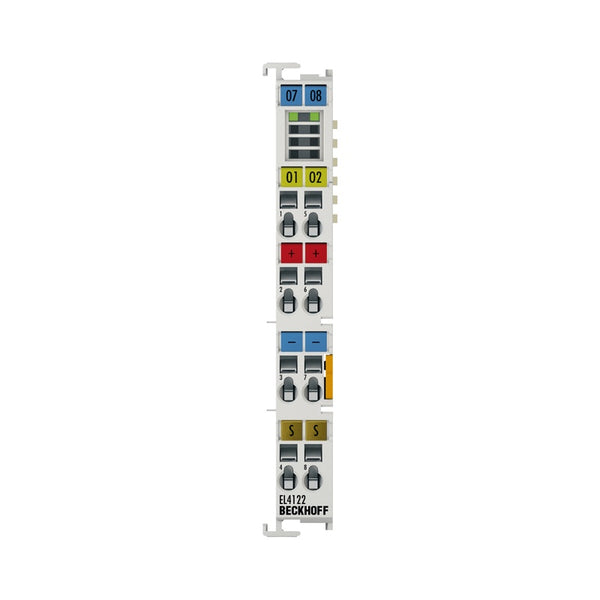

EL4122 | EtherCAT Terminal, 2-channel analog output, current, 4…20 mA, 16 bit

The EL4122 analog output terminal generates signals in the range between 4 and 20 mA. The power is supplied to the process level with a resolution of 16...

Technical Specifications

EL4122 Number of outputs 2 Power supply 24 V DC via power contacts Signal current 4…20 mA Distributed clocks yes Distributed clock accuracy Load Resolution 16 bit (incl. sign) Output error Electrical isolation 500 V (E-bus/signal voltage) Output rate max. 15 ksps Current consumption power contacts typ. 15 mA + load Current consumption E-bus typ. 110 mA Bit width in the process image 2 x 16 bit AO output Special features Watchdog parameterizable; user synchronization can be activated. Weight approx. 60 g Operating temperature -25…+55°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G

Availability: regular delivery
