Beckhoff EL4102 | Beckhoff Ethercat Terminals

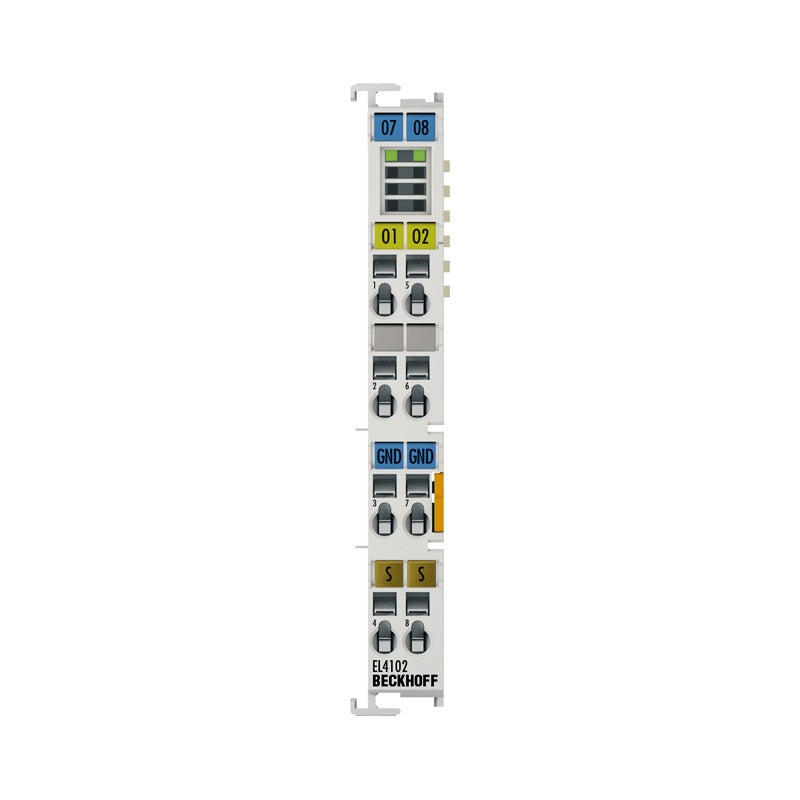

EL4102 | EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 16 bit

The EL4102 analog output terminal generates signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of ...

Technical Specifications

EL4102 Number of outputs 2 Power supply via the E-bus Signal voltage 0…10 V Distributed clocks yes Distributed clock accuracy Load > 5 kΩ (short-circuit proof) Resolution 16 bit (incl. sign) Output error Electrical isolation 500 V (E-bus/signal voltage) Output rate max. 15 ksps Current consumption power contacts – Current consumption E-bus typ. 170 mA Bit width in the process image 2 x 16 bit AO output Special features Watchdog parameterizable; user synchronization can be activated. Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marking ATEX: II 3 G E

Availability: regular delivery
