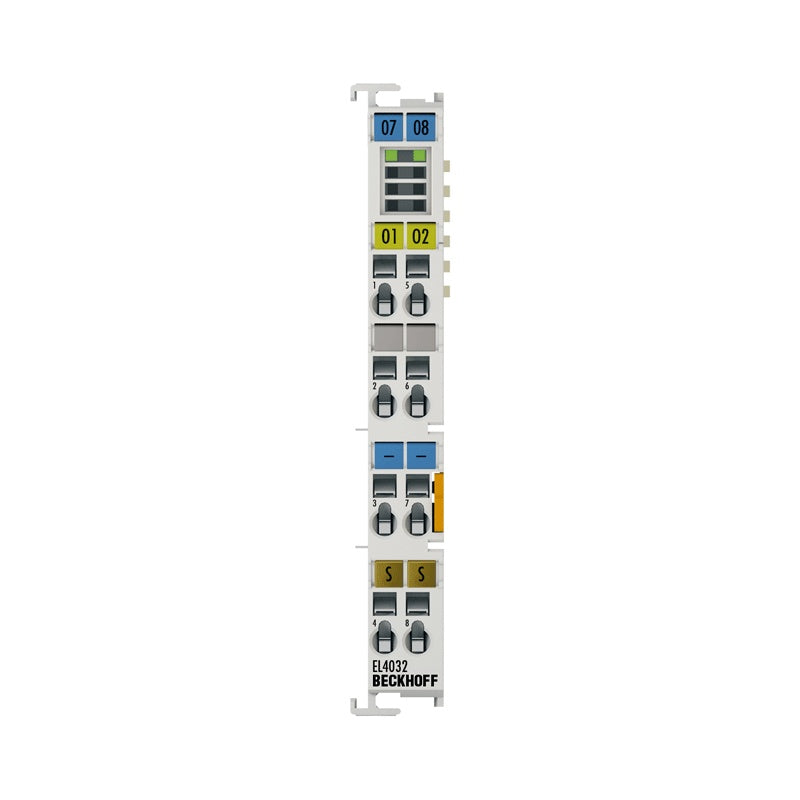

EL4032 | EtherCAT Terminal, 2-channel analog output, voltage, ±10 V, 12 bit

The EL4032 analog output terminal generates signals in the range between -10 and +10 V. The voltage is supplied to the process level with a resolution ...

Technical Specifications

EL4032 Number of outputs 2 Power supply 24 V DC via power contacts Signal voltage -10…+10 V Distributed clocks yes Distributed clock accuracy Load > 5 kΩ (short-circuit proof) Resolution 12 bit Output error Electrical isolation 500 V (E-bus/signal voltage) Conversion time ~ 150 µs Current consumption power contacts typ. 40 mA Current consumption E-bus typ. 140 mA Bit width in the process image 2 x 16 bit AO output Special features Optional watchdog: user-specific output value with ramp; user synchronization can be activated. Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC

Availability: regular delivery
