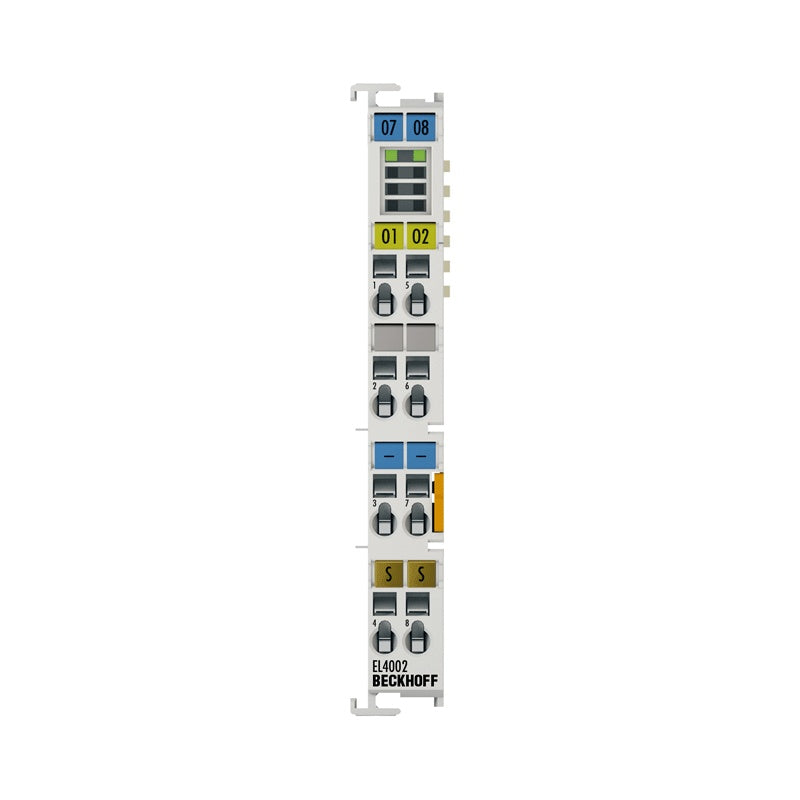

Beckhoff EL4002 | Beckhoff Ethercat Terminals

EL4002 | EtherCAT Terminal, 2-channel analog output, voltage, 0…10 V, 12 bit

The EL4002 analog output terminal generates signals in the range between 0 and 10 V. The voltage is supplied to the process level with a resolution of ...

Technical Specifications

EL4002 Number of outputs 2 Power supply 24 V DC via power contacts Signal voltage 0…10 V Distributed clocks yes Distributed clock accuracy Load > 5 kΩ (short-circuit proof) Resolution 12 bit Output error Electrical isolation 500 V (E-bus/signal voltage) Conversion time ~ 150 µs Current consumption power contacts typ. 40 mA Current consumption E-bus typ. 140 mA Bit width in the process image 2 x 16 bit AO output Special features Optional watchdog: user-specific output value with ramp; user synchronization can be activated. Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rating/installation pos. IP20/variable Pluggable wiring level for all ESxxxx terminals Approvals/markings CE, CCC, U

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
