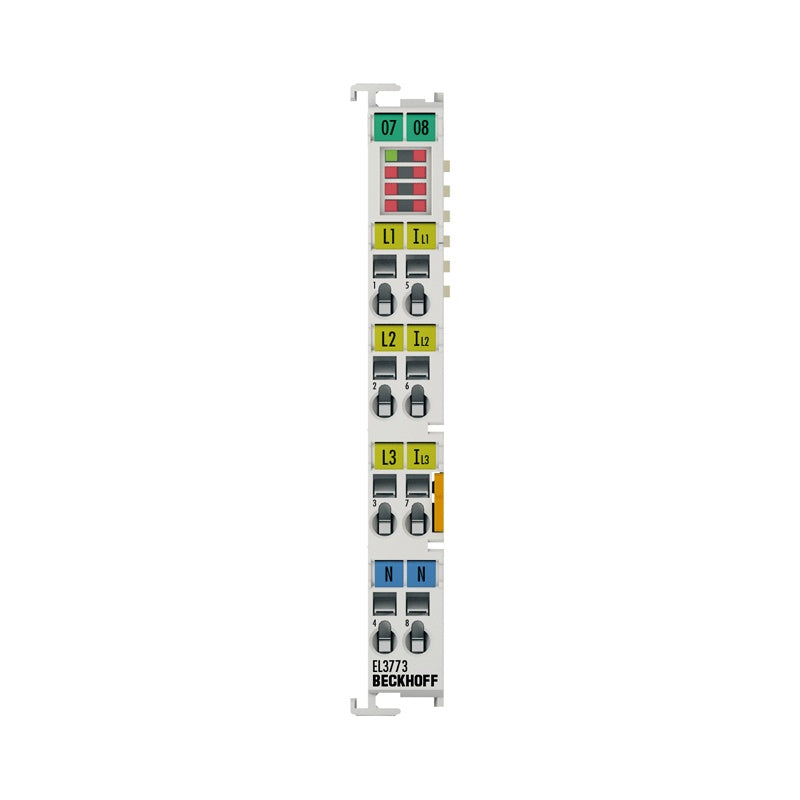

Beckhoff EL3773 | Beckhoff Ethercat Terminals

EL3773 | EtherCAT Terminal, 3-channel analog input, multi-function, 500 V AC/DC, 1 A, 16 bit, 10 ksps, oversampling

The EL3773 and EL3783 power monitoring terminals are designed for state monitoring of 3-phase AC voltage systems. For each phase voltages and currents ...

Technical Specifications

EL3773 Number of inputs 3 x current, 3 x voltage Oversampling factor n = 1…100 selectable Distributed clocks yes Conversion time min. 100 µs, all channels simultaneously Measured values current (I1, I2, I3), voltage as instantaneous values (oversampling) Measuring voltage max. 500 V AC 3~ (UL X -N: max. 288 V AC), max. 410 V DC Measuring current max. 1 A (AC)/1.5 A (DC), via measuring transformers x A AC/1 A AC Measuring range, technical generally 100% of the nominal measuring range, see documentation Resolution 16 bit (incl. sign) Measurement error/uncertainty 0.5% relative to full scale value Electrical isolation 2500 V Current consumption E-bus 200 mA Current consumption power contacts – Special features oversampling, AC/DC measurement, optional single-phase operation, adjustable hardware filters Weight approx. 75 g Operating temperature 0…55°C Storage temperature -25…+85°C Relative h

Availability: regular delivery
