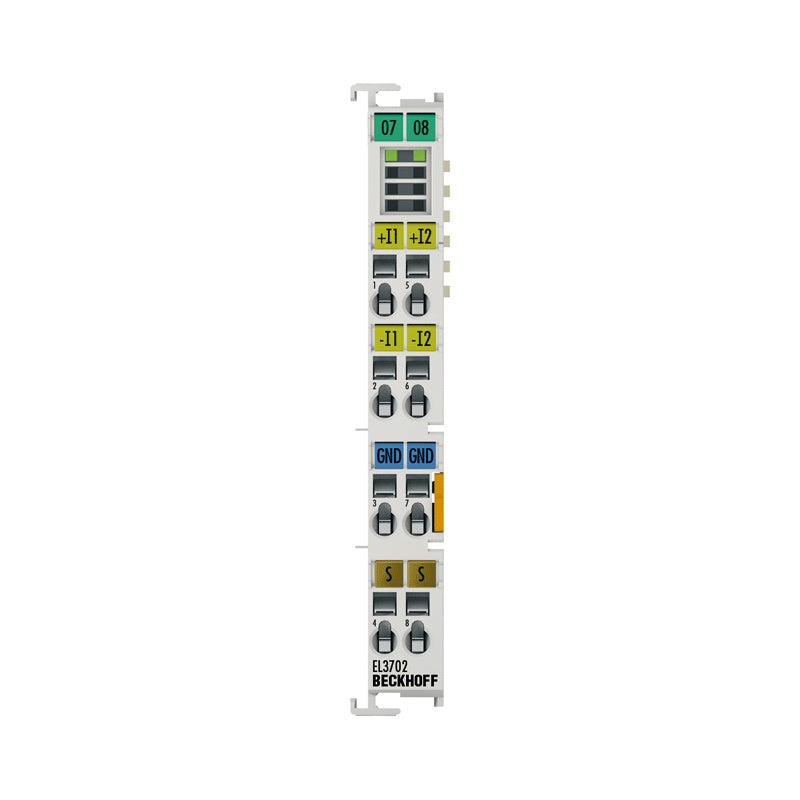

EL3702 | EtherCAT Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, oversampling

The EL3702 analog input terminal handles signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 16 bits, and is transmitted...

Technical Specifications

EL3702 Number of inputs 2 (differential) Power supply via the E-bus Signal voltage -10…+10 V Max. sampling rate max. 10 µs/100 ksps (per channel, simultaneously) Oversampling factor n = 1…100 selectable (max. 100 ksamples/s) Input signal bandwidth 0…30 kHz recommended Distributed clocks yes Distributed clock accuracy Internal resistance > 200 kΩ Input filter cut-off frequency 80 kHz Common mode voltage U CM max. 35 V Conversion time ~ 10 µs per sample Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 200 mA Current consumption power contacts – Bit width in the process image input: n x 2 x 16 bit data; optionally 2 x 16 bit cycle counter, 4 byte StartNextLatch time Special features oversampling Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%,
