Beckhoff EL3356 | Beckhoff Ethercat Terminals

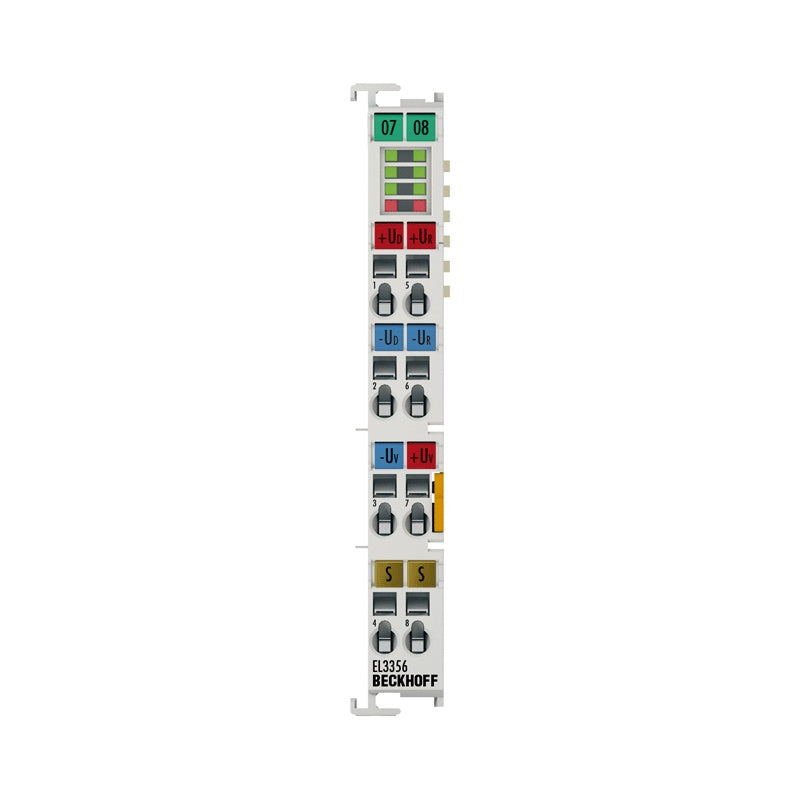

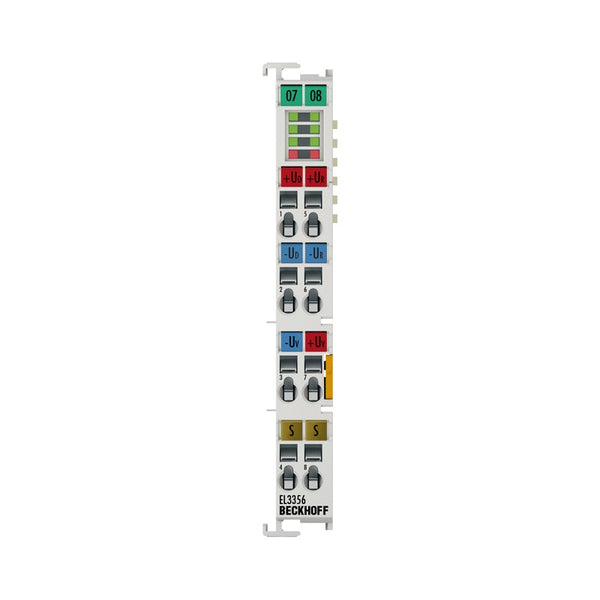

EL3356 | EtherCAT Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit

The analog EL3356 input terminal enables direct connection of a resistor bridge or load cell in a 4- or 6-wire connection technology. The ratio between...

Technical Specifications

EL3356 Number of inputs 2, for 1 resistor bridge in full bridge technology Power supply via the E-bus Distributed clocks – Measuring range U D max. ±27 mV Measuring range U REF max. ±13.8 V Internal resistance > 200 kΩ (U REF ), > 1 MΩ (U D ) Supported nominal sensitivity all, parameter resolution: 0.01 µV/V; recommended: 0.5…4 mV/V Input filter cut-off frequency 10 kHz low pass (-3 dB) Conversion rate 100…4 samples/s (10…250 ms conversion time) Power supply U V up to 12 V DC from power contacts, dependent on sensor Resolution 16 bit, 32 bit presentation Measurement error/uncertainty Current consumption E-bus typ. 210 mA Current consumption power contacts dependent on strain gauge supply, min. 1 mA Special features self-calibration, quadruple averager, dynamic filters Weight approx. 60 g Operating temperature -25…+55°C Storage temperature -40…+85°C Relative humidity 95%, no condensation
