Beckhoff EL3318 | Beckhoff Ethercat Terminals

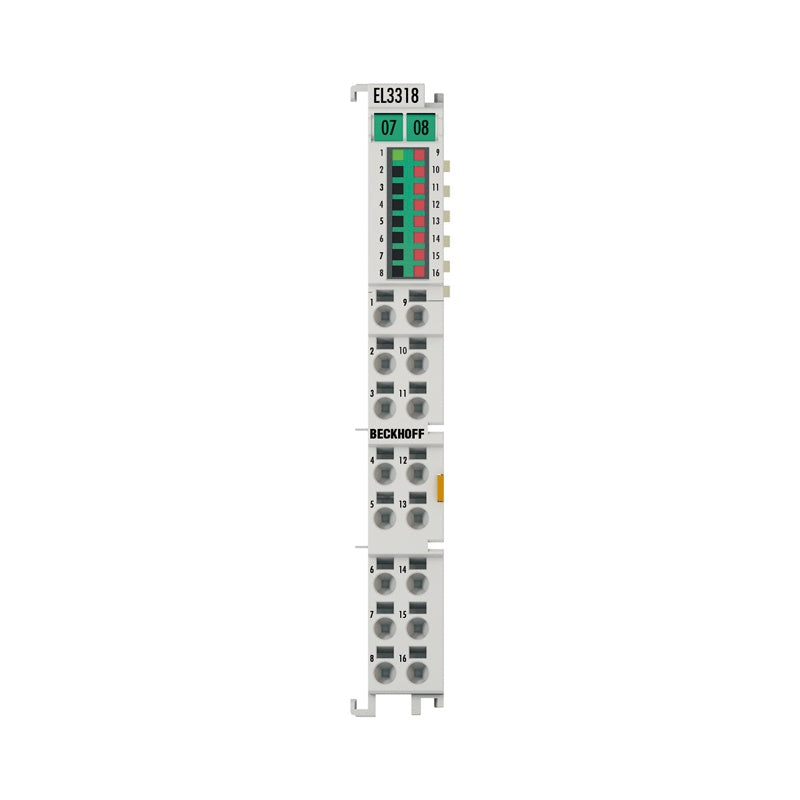

EL3318 | EtherCAT Terminal, 8-channel analog input, temperature, thermocouple, 16 bit

The EL3318 analog input terminal allows eight thermocouples to be connected directly and is thus particularly suitable for space-saving use in control ...

Technical Specifications

EL3318 Number of inputs 8 Power supply via the E-bus Distributed clocks – Input filter cut-off frequency typ. 1 kHz Connection technology 2-wire Conversion time approx. 3.5 s up to 30 ms, depending on configuration and filter setting, default: approx. 380 ms Voltage measurement ±30/±60/±75 mV Resolution 16 bit, representation adjustable: 0.1/0.01°C or 1/2/4 µV per digit Temperature measurement (thermocouple) type B, C, E, J, K, L, N, R, S, T, U (default setting: type K) Measurement uncertainty (temperature measurement) at 23 °C ambient temperature, with internal cold junction, according type: B: ±6.3°C; C: ±4.9°C; E: ±3.1°C; J: ±3.2°C; K: ±3.0°C; L: ±3.1°C; N: ±3.4°C; R: ±5.2°C; S: ±5.4°C; T: ±3.3°C; U: ±3.2°C; for further details see documentation Measurement uncertainty (voltage measurement) at ±75 mV, 23°C ambient temperature: Electrical isolation 500 V (E-bus/signal voltage) Current

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
