Beckhoff EL3314-0010 | Beckhoff Ethercat Terminals

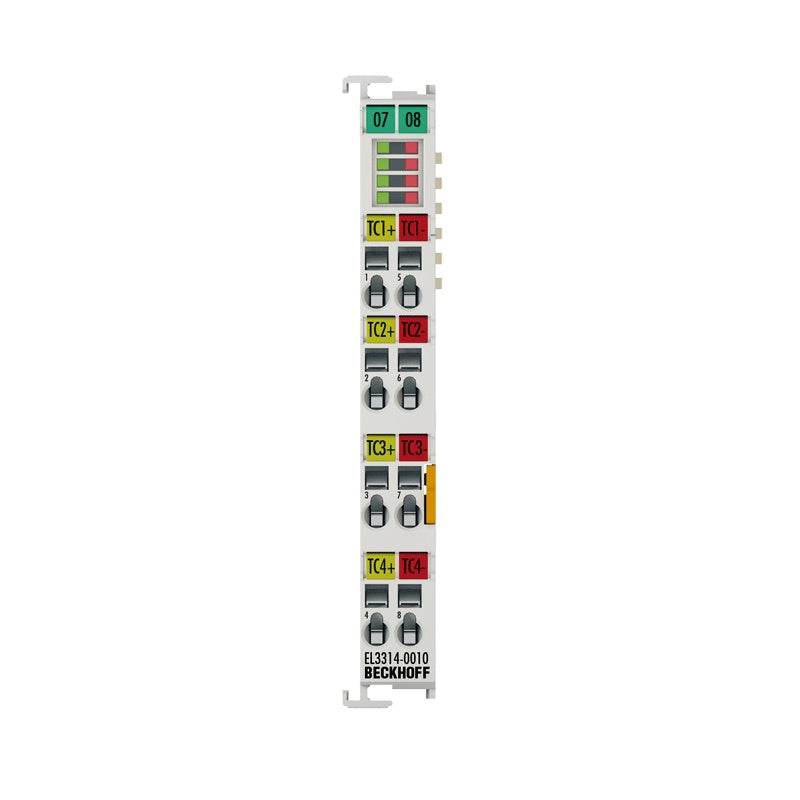

EL3314-0010 | EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 24 bit, high-precision

The EL3314-0010 analog input terminal allows four thermocouples to be connected directly. The EtherCAT Terminal circuit can operate thermocouple sensors...

Technical Specifications

EL3314-0010 Number of inputs 4 Power supply via the E-bus Distributed clocks – Input filter cut-off frequency typ. 1 kHz Connection technology 2-wire Conversion time approx. 1.6 s up to 12 ms, depending on configuration and filter setting, default: approx. 165 ms Voltage measurement ±78 mV Resolution 24 bit, presentation adjustable: 0.1/0.01/0.001°C per digit or 10 nV per digit Temperature measurement (thermocouple) type B, C, E, J, K, L, N, R, S, T, U (default setting: type K) Measurement uncertainty (temperature measurement) at 23°C ambient temperature, with internal cold junction, according type: B: ±2.6°C; C: ±2.2°C; E: ±1.6°C; J: ±1.6°C; K: ±1.6°C; L: ±1.5°C; N: ±1.6°C; R: ±2.2°C; S: ±2.3°C; T: ±1.6°C; U: ±1.5°C; for further details see documentation Measurement uncertainty (voltage measurement) at ±78 mV, 23°C ambient temperature: Electrical isolation 500 V (E-bus/signal voltage) C

Availability: regular delivery
