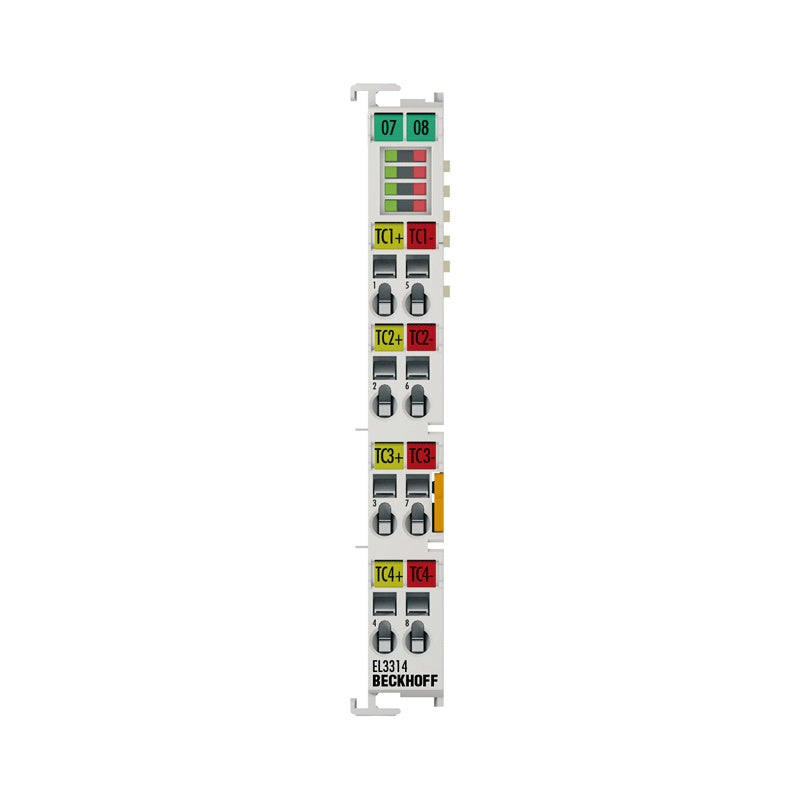

Beckhoff EL3314 | Beckhoff Ethercat Terminals

EL3314 | EtherCAT Terminal, 4-channel analog input, temperature, thermocouple, 16 bit

The EL3314 analog input terminal allows four thermocouples to be connected directly. The EtherCAT Terminal circuit can operate thermocouple sensors using...

Technical Specifications

EL3314 Number of inputs 4 Power supply via the E-bus Distributed clocks – Input filter cut-off frequency typ. 1 kHz Connection technology 2-wire Conversion time approx. 2.5 s up to 10 ms, depending on configuration and filter setting, default: approx. 250 ms Voltage measurement ±30/±60/±75 mV Resolution 16 bit, representation adjustable: 0.1/0.01°C or 1/2/4 µV per digit Temperature measurement (thermocouple) type B, C, E, J, K, L, N, R, S, T, U (default setting: type K) Measurement uncertainty (temperature measurement) at 23°C ambient temperature, with internal cold junction, according type: B: ±8.5°C; C: ±6.2°C; E: ±2.5°C; J: ±2.7°C; K: ±3°C; L: ±2.3°C; N: ±3°C; R: ±6.7°C; S: ±7.1°C; T: ±2.9°C; U: ±2.5°C; for further details see documentation Measurement uncertainty (voltage measurement) at ±75 mV, 23°C ambient temperature: Electrical isolation 500 V (E-bus/signal voltage) Current consu

Availability: regular delivery
