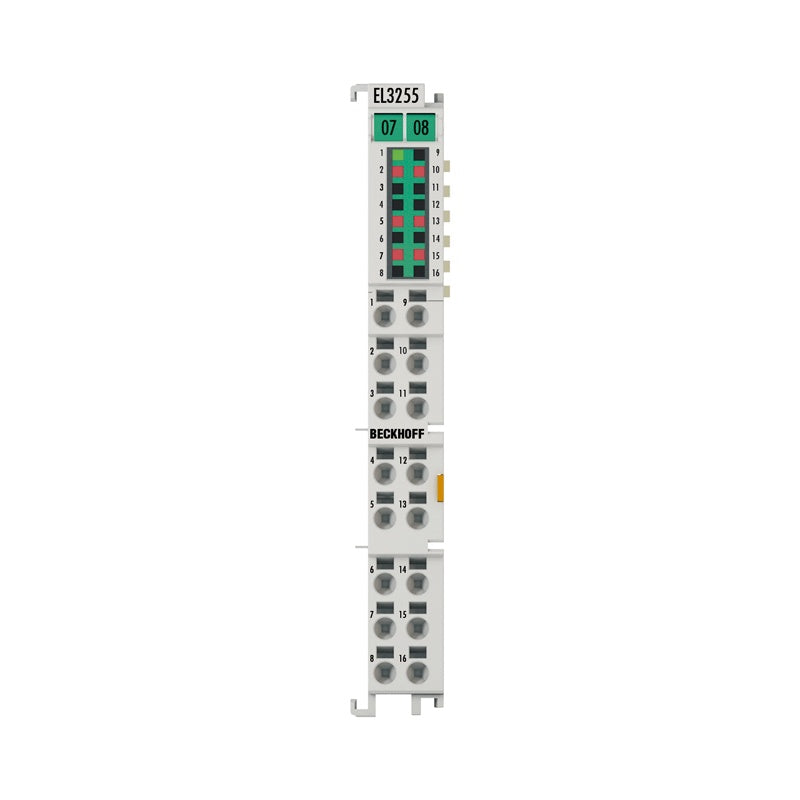

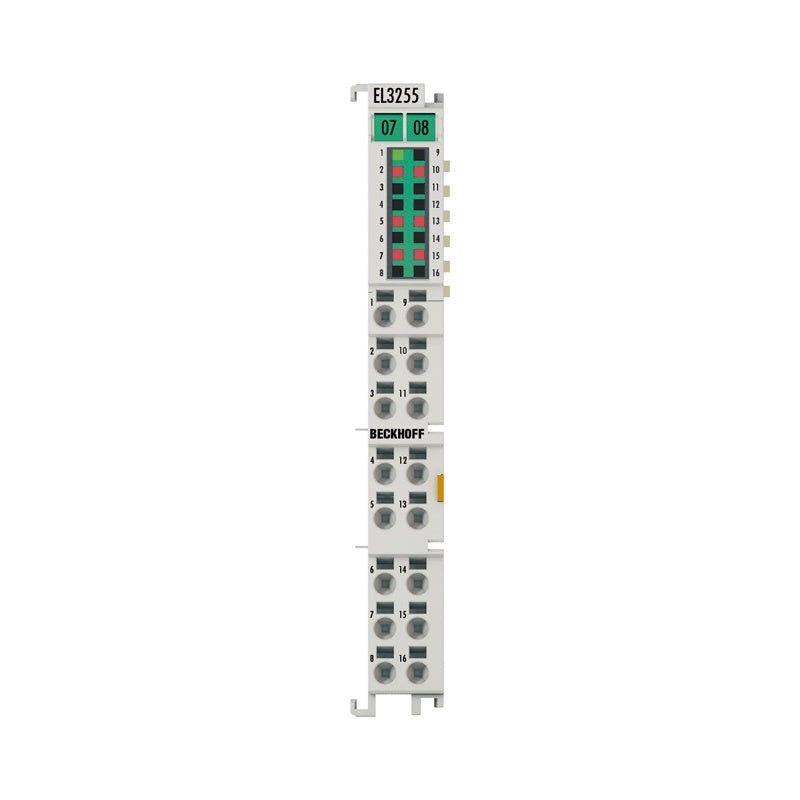

EL3255 | EtherCAT Terminal, 5-channel analog input, potentiometer, 300 Ω…50 kΩ, 16 bit

The EL3255 EtherCAT Terminal enables potentiometers to be connected directly. A stabilized power supply in the terminal and the ratiometric measurement...

Technical Specifications

EL3255 Number of inputs 5 Ground reference (input) single-ended Power supply via power contacts Distributed clocks yes Feed voltage potentiometer typ. 10 V ±10% Internal resistance >> 100 kΩ to wiper connection Input filter cut-off frequency typ. -3 dB at 3 kHz and potentiometer 50 kΩ Sensor type potentiometer 300 Ω…50 kΩ Output current max. 0.3 A total supply current for the potentiometers Wire break detection yes Conversion time typ. 300…700 µs, dependent on settings, default setting: approx. 500 µs (5 channels, filter deactivated) Measuring range potentiometer 300 Ω…50 kΩ Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/field potential) Current consumption E-bus typ. 80 mA Current consumption power contacts dependent on the potentiometers, max. 70 mA Bit width in the process image 5 x 16 bit input Configuration no address setting, configur
