Beckhoff EL3214 | Beckhoff Ethercat Terminals

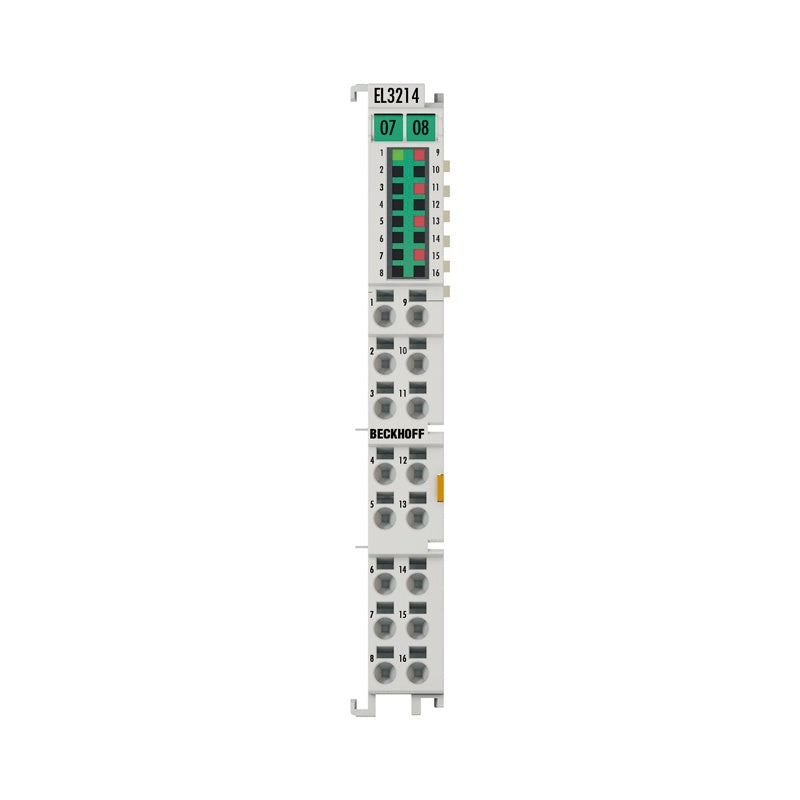

EL3214 | EtherCAT Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection

The EL3214 analog input terminal facilitates the direct connection of four resistance sensors using 3-wire technology over a width of 12 mm (high-density...

Technical Specifications

EL3214 Number of inputs 4 Ground reference (input) single-ended Power supply via the E-bus Distributed clocks – Input filter cut-off frequency typ. 1 kHz Sensor type Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…4 kΩ), KTY sensors (types see documentation) Connection technology 2- or 3-wire (default: 3-wire) Conversion time approx. 170 ms default setting Measuring range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) Measuring current Temperature range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) Resolution 0.1°C per digit Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 140 mA Current consumption power contacts – Special features integrated digital filter, limit value monitoring, variable connection technology Weight approx. 60 g Operating temperature -25…+60°C Stor

Availability: regular delivery
