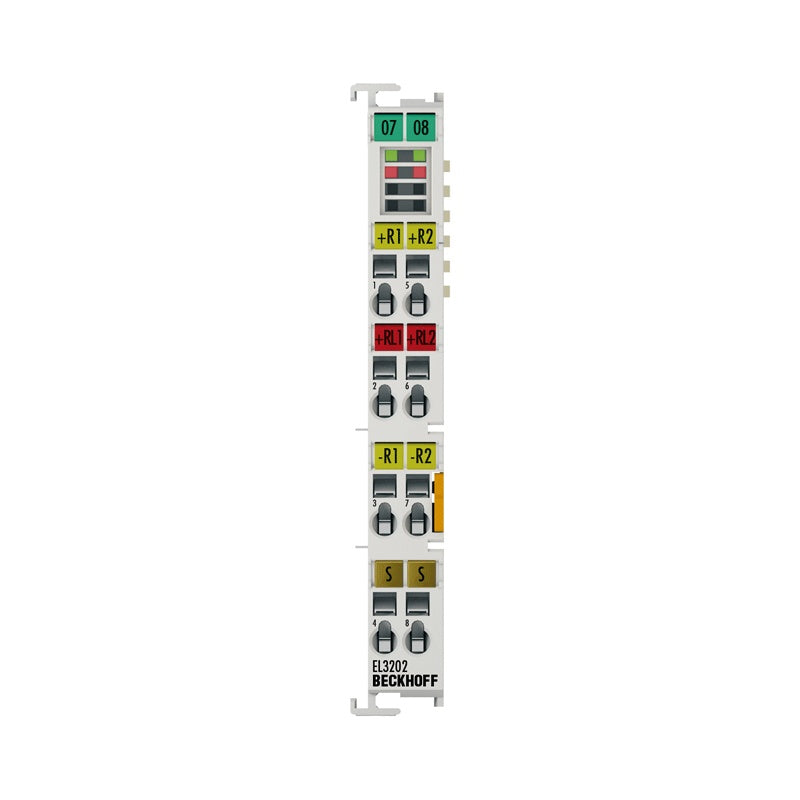

Beckhoff EL3202 | Beckhoff Ethercat Terminals

EL3202 | EtherCAT Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit

The EL3202 analog input terminal facilitates the direct connection of two resistance sensors. The measured resistance value can either be output directly...

Technical Specifications

EL3202 Number of inputs 2 Power supply via the E-bus Distributed clocks – Input filter cut-off frequency typ. 1 kHz Sensor type Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…4 kΩ), KTY sensors (types see documentation) Connection technology 2- or 3-wire (default: 2-wire) Conversion time approx. 85 ms default setting, 2…800 ms configurable Measuring current Temperature range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) Resolution 0.1°C per digit Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 190 mA Current consumption power contacts – Bit width in the process image 2 x 32 bit RTD input Special features integrated digital filter, limit value monitoring, variable connection technology Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Rela

Availability: regular delivery
