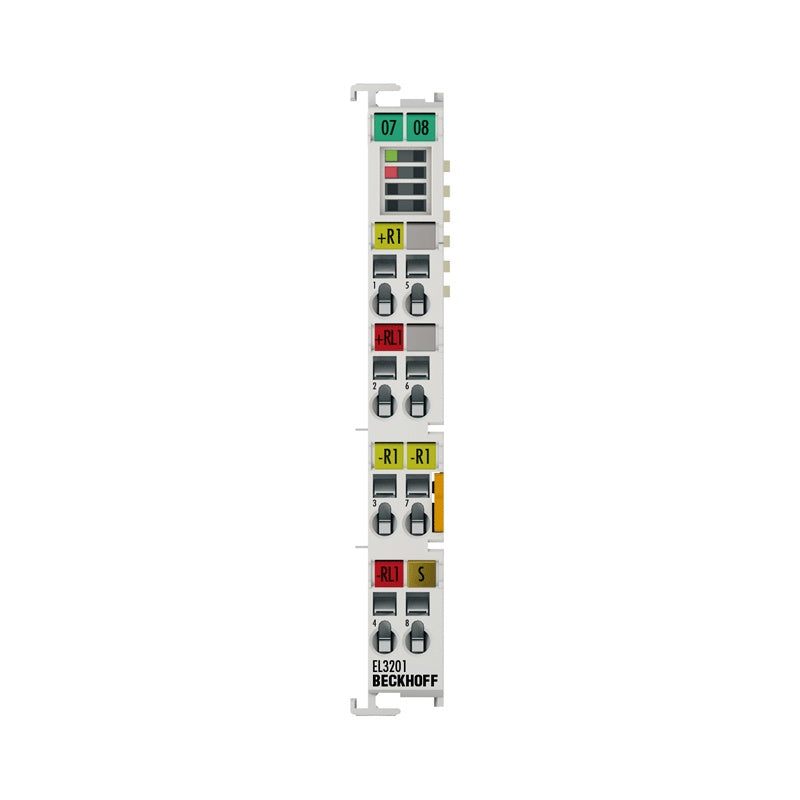

EL3201 | EtherCAT Terminal, 1-channel analog input, temperature, RTD (Pt100), 16 bit

The EL3201 analog input terminal facilitates the direct connection of a resistance sensor. The measured resistance value can either be output directly ...

Technical Specifications

EL3201 Number of inputs 1 Power supply via the E-bus Distributed clocks – Input filter cut-off frequency typ. 1 kHz Sensor type Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…4 kΩ), KTY sensors (types see documentation) Connection technology 2-, 3-, 4-wire (default: 2-wire) Conversion time approx. 24 ms default setting, 4…500 ms configurable Measuring current Temperature range -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) Resolution 0.1°C per digit Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 190 mA Current consumption power contacts – Bit width in the process image 1 x 32 bit RTD input Special features integrated digital filter, limit value monitoring, variable connection technology Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Re
