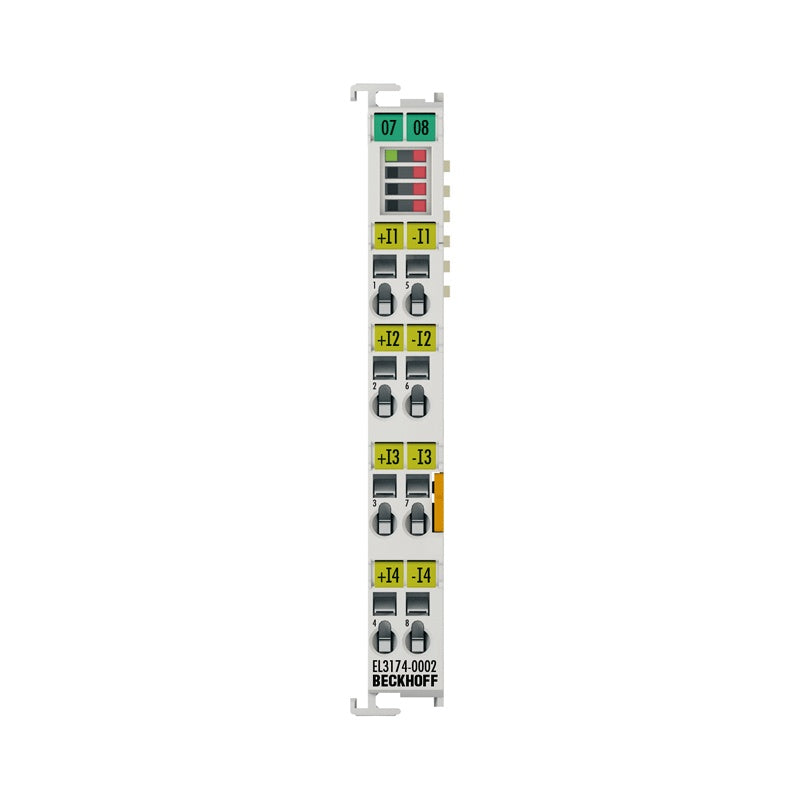

Beckhoff EL3174-0002 | Beckhoff Ethercat Terminals

EL3174-0002 | EtherCAT Terminal, 4-channel analog input, multi-function, ±10 V, ±20 mA, 16 bit, differential, electrically isolated

The EL3174-0002 analog input terminal has four individually parameterizable inputs. Signals in the range from -10/0 to +10 V or -20/0/+4 to +20 mA can ...

Technical Specifications

EL3174-0002 Number of inputs 4 Power supply via the E-bus Oversampling factor – Distributed clocks yes Distributed clock accuracy Internal resistance > 200 kΩ | typ. 85 Ω Input filter cut-off frequency 5 kHz Conversion time minimum 150 µs Measuring range, nominal -10/0…+10 V | -20/0/+4…+20 mA Measuring range, technical -10.73…+10.73 V | -21.47…+21.47 mA Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 2500 V functional isolation (test voltage channel/channel and channel/fieldbus, production test) Current consumption E-bus typ. 150 mA Current consumption power contacts – Bit width in the process image inputs: 16 byte Configuration no address or configuration setting Special features U/I parameterizable, ExtendedRange, standard and compact process image, activatable FIR/IIR filters Weight approx. 65 g Operating temperature -25…+60°C Storage temperature -40…

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
