Beckhoff EL3162 | Beckhoff Ethercat Terminals

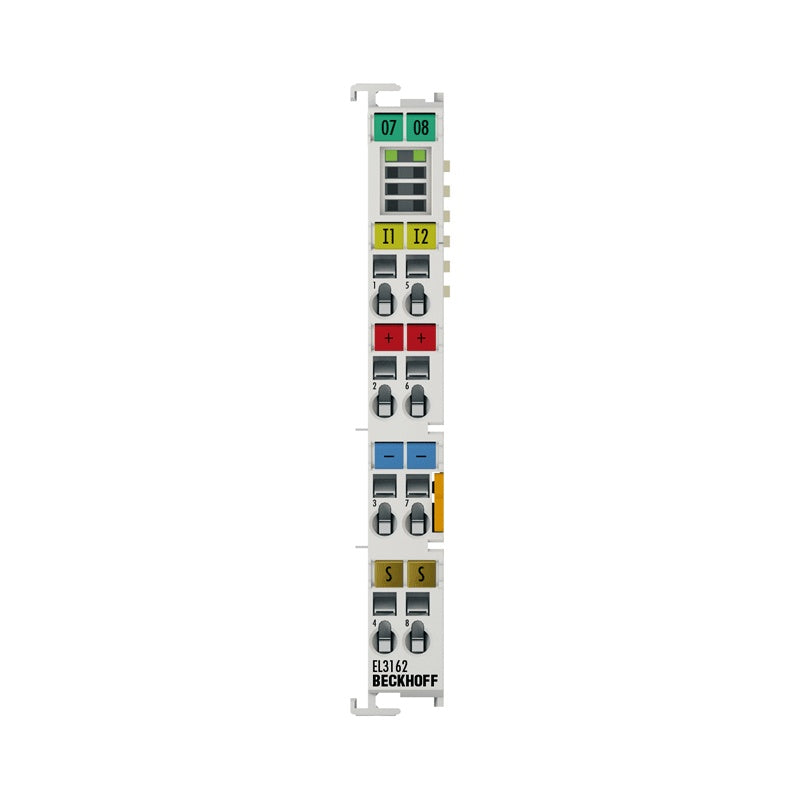

EL3162 | EtherCAT Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, single-ended

The EL3162 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitized to a resolution of 16 bits, and is transmitted...

Technical Specifications

EL3162 Number of inputs 2 (single-ended) Power supply via the E-bus Signal voltage 0…10 V Distributed clocks yes Internal resistance > 200 kΩ Input filter cut-off frequency 5 kHz Dielectric strength max. 30 V Conversion time ~ 50 µs Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 170 mA Current consumption power contacts – Bit width in the process image 2 x 16 bit input, 2 x 8 bit status Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring level for all ESxxxx terminals Protect. rating

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
