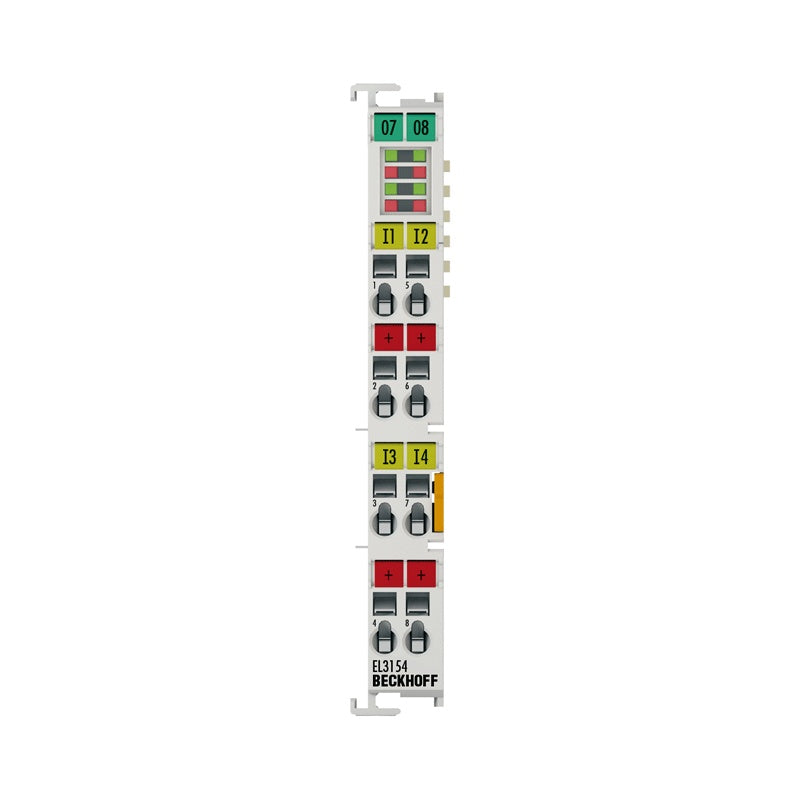

EL3154 | EtherCAT Terminal, 4-channel analog input, current, 4…20 mA, 16 bit, single-ended

The EL3154 analog input terminal processes signals in the range between 4 and 20 mA. The current is digitized to a resolution of 16 bits and is transmitted...

Technical Specifications

EL3154 Number of inputs 4 (single-ended) Signal current 4…20 mA Distributed clocks yes Internal resistance typ. 85 Ω + diode voltage Input filter cut-off frequency 5 kHz Dielectric strength max. 30 V Conversion time ~ 100 µs Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 16 byte Configuration no address or configuration setting required Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring level for all
