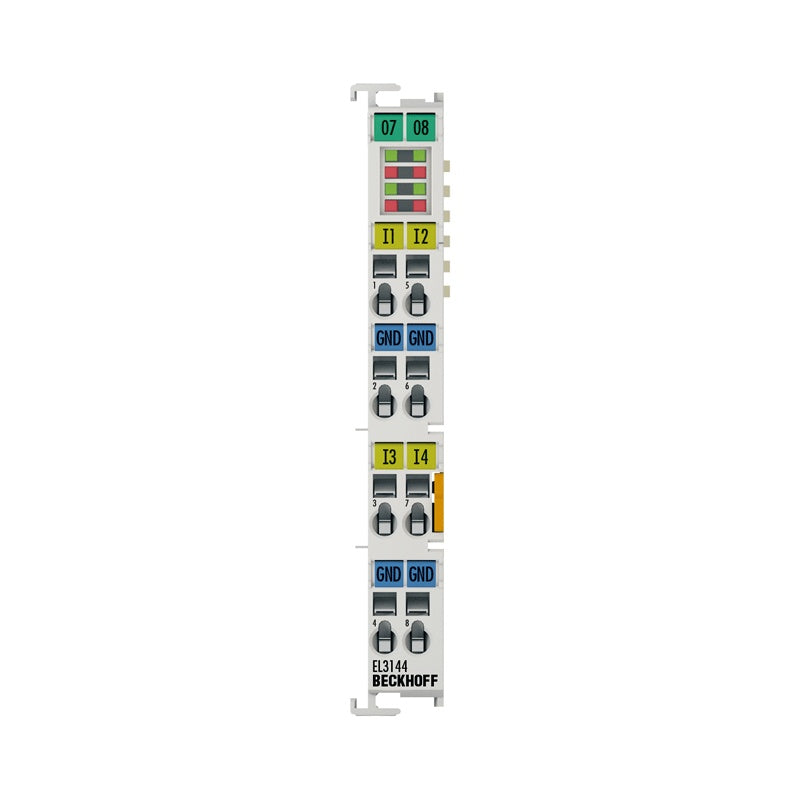

EL3144 | EtherCAT Terminal, 4-channel analog input, current, 0…20 mA, 16 bit, single-ended

The EL3144 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitized to a resolution of 16 bits and is transmitted...

Technical Specifications

EL3144 Number of inputs 4 (single-ended) Power supply via the E-bus Signal current 0…20 mA Oversampling factor – Input signal bandwidth see input filter Distributed clocks yes Distributed clock accuracy Internal resistance typ. 85 Ω + diode voltage Input filter cut-off frequency 5 kHz Dielectric strength max. 30 V Conversion time ~ 100 µs Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 16 byte Configuration no address or configuration setting required Special features standard and compact process image, switchable measuring data representation in the EL3142-0010, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 9
