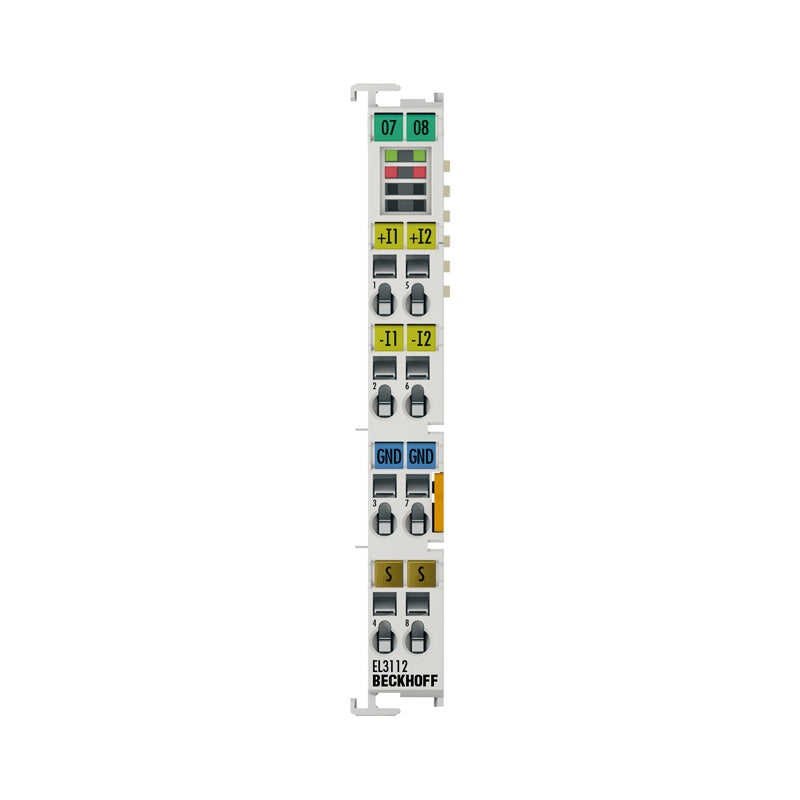

Beckhoff EL3112 | Beckhoff Ethercat Terminals

EL3112 | EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential

The EL3112 analog input terminal processes signals in the range between 0 and 20 mA. The current is digitized to a resolution of 16 bits and is transmitted...

Technical Specifications

EL3112 Number of inputs 2 (differential) Power supply via the E-bus Signal current 0…20 mA Oversampling factor – Input signal bandwidth see input filter Distributed clocks yes Distributed clock accuracy Internal resistance typ. 85 Ω + diode voltage Input filter cut-off frequency 5 kHz Common mode voltage U CM max. 10 V Conversion time ~ 50 µs (fast mode ~ 35 µs) Resolution 16 bit (incl. sign) Measurement error/uncertainty Surge voltage resistance 35 V DC Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 170 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60

Availability: regular delivery
