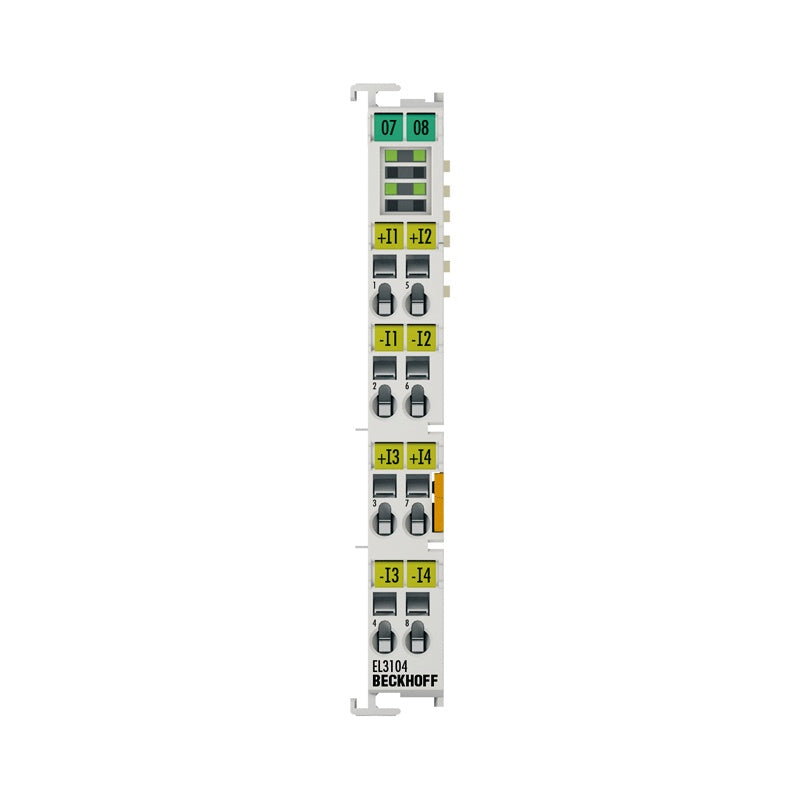

EL3104 | EtherCAT Terminal, 4-channel analog input, voltage, ±10 V, 16 bit, differential

The EL3104 analog input terminal processes signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 16 bits, and is transmitted...

Technical Specifications

EL3104 Number of inputs 4 (differential) Power supply via the E-bus Signal voltage -10…+10 V Oversampling factor – Input signal bandwidth – Distributed clocks yes Distributed clock accuracy Internal resistance > 200 kΩ Input filter cut-off frequency 5 kHz Common mode voltage U CM max. 35 V (relative to GND power contact) Conversion time ~ 100 µs Resolution 16 bit (incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 16 byte Configuration no address or configuration setting Special features standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring Weight approx. 65 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation V
