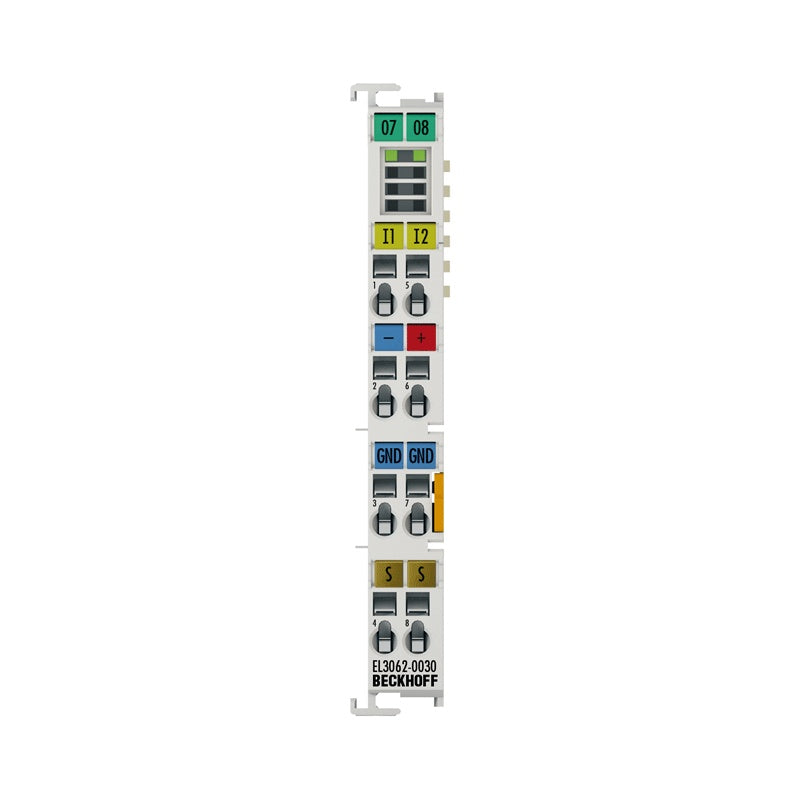

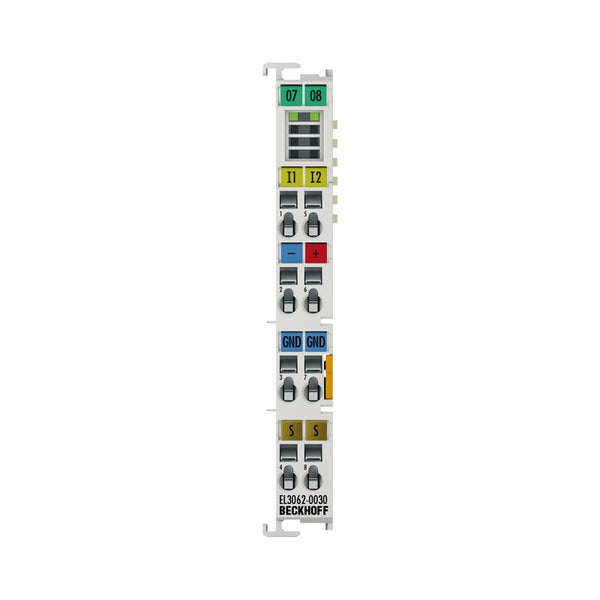

Beckhoff EL3062-0030 | Beckhoff Ethercat Terminals

EL3062-0030 | EtherCAT Terminal, 2-channel analog input, voltage, 0…30 V, 12 bit, single-ended

The EL3062-0030 analog input terminal processes signals in the range between 0 and 30 V. The voltage is digitized to a resolution of 12 bits and is transmitted...

Technical Specifications

EL3062-0030 Number of inputs 2 (single-ended) Power supply via the E-bus Signal voltage 0…30 V Distributed clocks – Internal resistance > 130 kΩ Input filter cut-off frequency 1 kHz Dielectric strength max. 40 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Special features activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Approvals/markings CE, CCC, UL, ATEX, IECEx Ex marki

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
