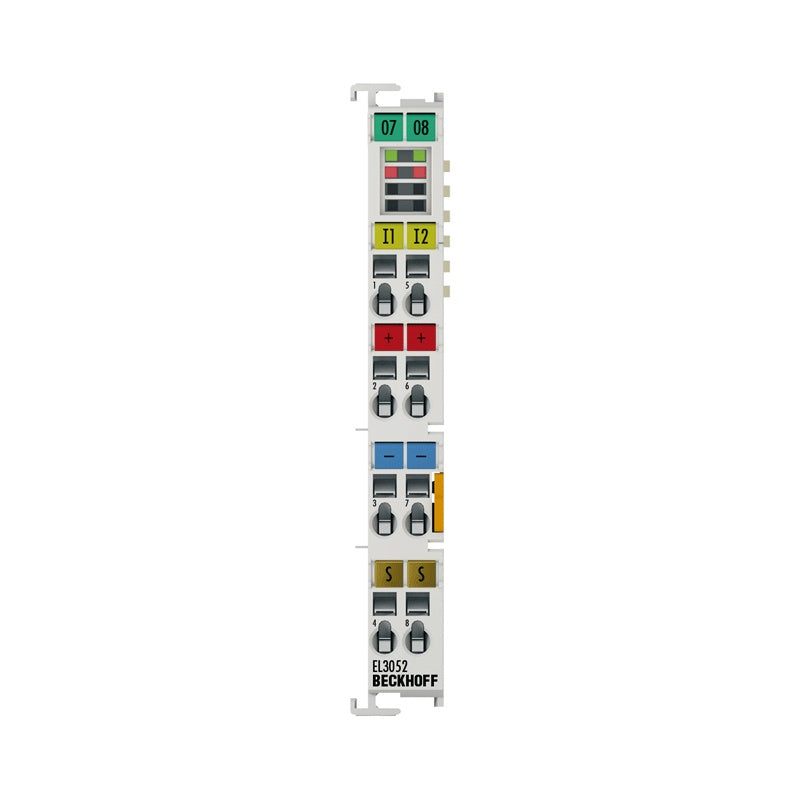

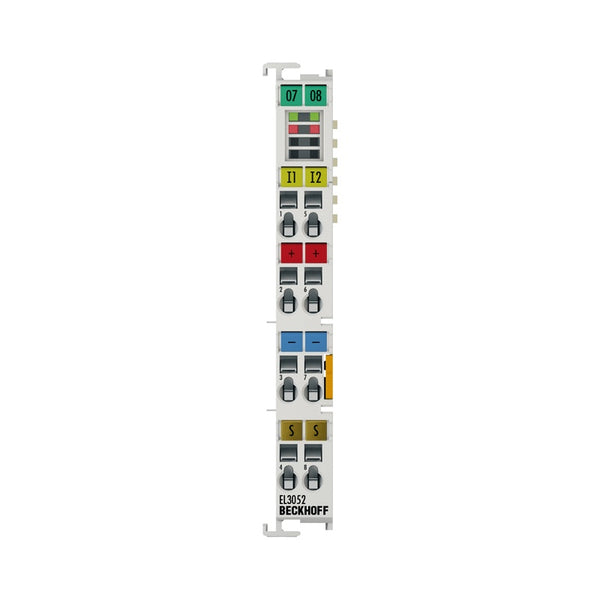

Beckhoff EL3052 | Beckhoff Ethercat Terminals

EL3052 | EtherCAT Terminal, 2-channel analog input, current, 4…20 mA, 12 bit, single-ended

The job of the EL3052 analog input terminal is to supply power to measuring transducers located in the field and to transmit analog measurement signals...

Technical Specifications

EL3052 Number of inputs 2 (single-ended) Power supply via the E-bus Signal current 4…20 mA Distributed clocks – Internal resistance typ. 85 Ω Input filter cut-off frequency 1 kHz Dielectric strength max. 30 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring leve

Availability: regular delivery
