Beckhoff EL3042 | Beckhoff Ethercat Terminals

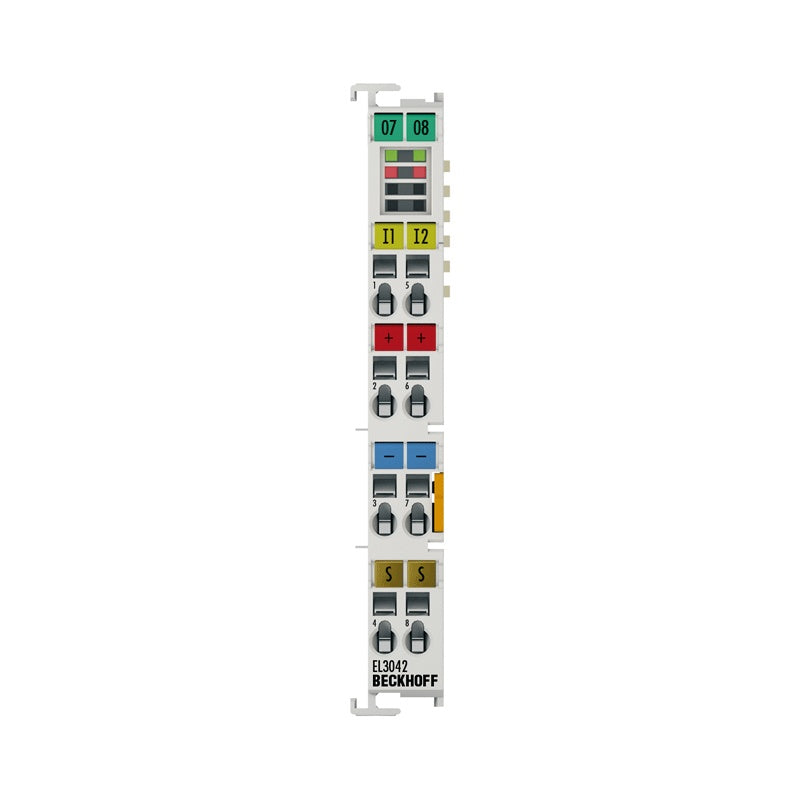

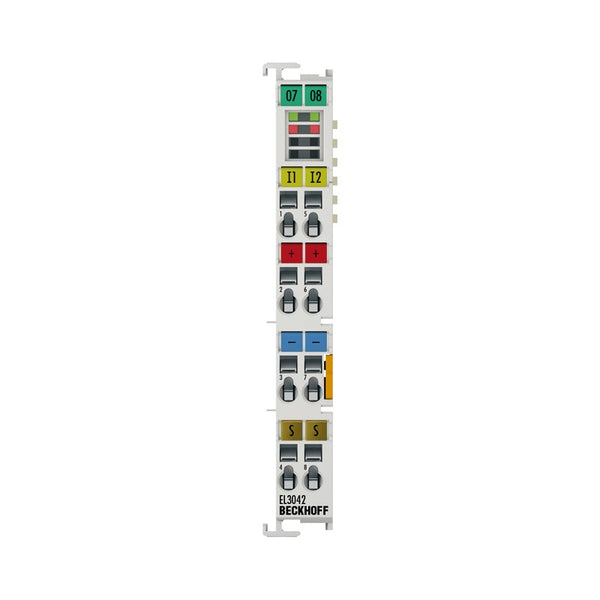

EL3042 | EtherCAT Terminal, 2-channel analog input, current, 0…20 mA, 12 bit, single-ended

The job of the EL3042 analog input terminal is to supply power to measuring transducers located in the field, and to transmit analog measurement signals...

Technical Specifications

EL3042 Number of inputs 2 (single-ended) Power supply via the E-bus Signal current 0…20 mA Distributed clocks – Internal resistance typ. 85 Ω Input filter cut-off frequency 1 kHz Dielectric strength max. 30 V Conversion time 0.625 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 8 byte Special features standard and compact process image, activatable FIR/IIR filters, limit value monitoring Weight approx. 60 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Pluggable wiring leve

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
