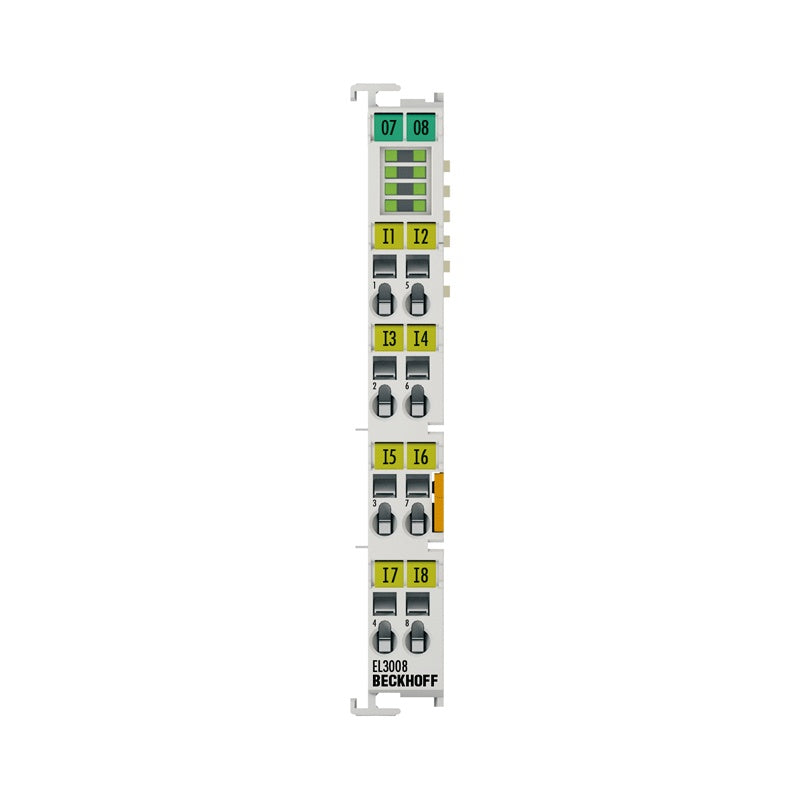

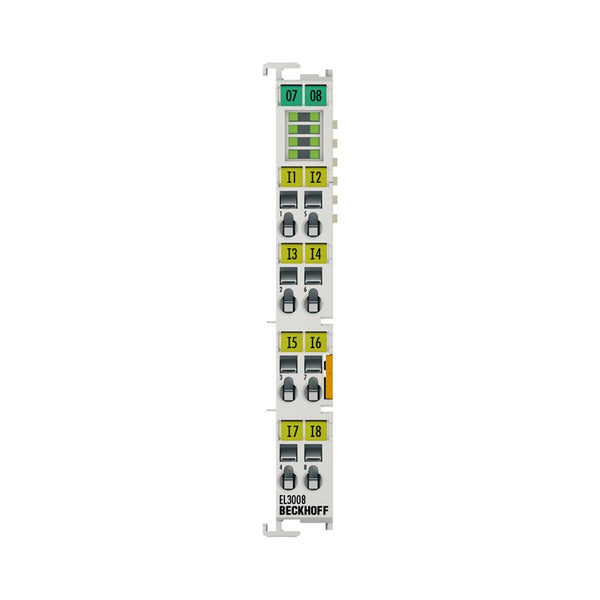

EL3008 | EtherCAT Terminal, 8-channel analog input, voltage, ±10 V, 12 bit, single-ended

The EL3008 analog input terminal processes signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 12 bits, and is transmitted...

Technical Specifications

EL3008 Number of inputs 8 (single-ended) Power supply via the E-bus Signal voltage -10…+10 V Distributed clocks – Internal resistance > 130 kΩ Input filter cut-off frequency 1 kHz Dielectric strength max. 30 V Conversion time 1.25 ms default setting, configurable, multiplex Resolution 12 bit (16 bit presentation incl. sign) Measurement error/uncertainty Electrical isolation 500 V (E-bus/signal voltage) Current consumption E-bus typ. 130 mA Current consumption power contacts – Bit width in the process image inputs: 32 byte Configuration no address or configuration setting required Special features standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring, overload display in the process data Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibrati
