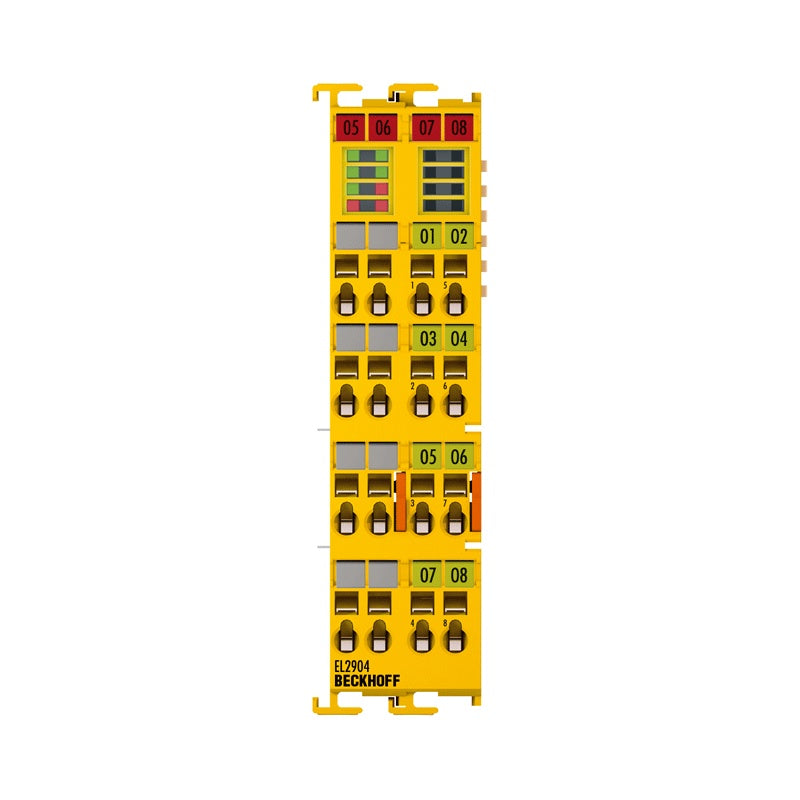

EL2904 | EtherCAT Terminal, 4-channel digital output, 24 V DC, 0.5 A, TwinSAFE

The EL2904 TwinSAFE component is a digital output terminal with four channels. It switches 24 V DC actuators with up to 0.5 A per channel and has four ...

Technical Specifications

EL2904 Connection technology 1-/2-wire Specification output of output signals Number of outputs 4 Max. output current 0.5 A (per channel), min. 20 mA (with active current measurement) Protocol TwinSAFE/Safety over EtherCAT Fault response time ≤ watchdog time (parameterizable) Current consumption power contacts load-dependent Current consumption E-bus typ. 221 mA Installation position horizontal Safety standard DIN EN ISO 13849-1:2008 (Cat. 4, PL e) and EN 61508:2010 (SIL 3) Weight approx. 100 g Protection rating IP20 Ex marking ATEX: II 3G Ex ec IIC T4 Gc IECEx: Ex ec IIC T4 Gc cFMus: Class I, Division 2, Groups A, B, C, D Class I, Zone 2, AEx ec IIC T4 Gc Technical data Housing data To top Housing data EL-24-2x8pin Design form compact terminal housing with signal LEDs Material polycarbonate Installation on 35 mm DIN rail, conforming to EN 60715 with lock Side by side mounting by means o

Availability: regular delivery
