Beckhoff EL2828 | Beckhoff Ethercat Terminals

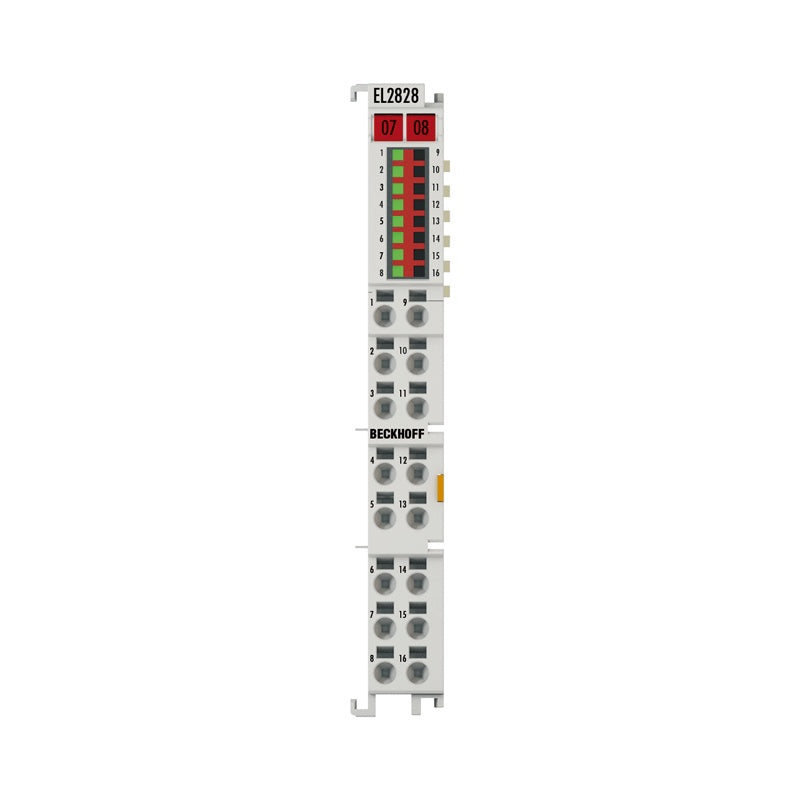

EL2828 | EtherCAT Terminal, 8-channel digital output, 24 V DC, 2 A

The EL2828 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with...

Technical Specifications

EL2828 Connection technology 2-wire Number of outputs 8 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, capacitive Distributed clocks – Max. output current 2 A per channel, ∑ 10 A Short-circuit current typ. Reverse polarity protection yes Switching-off energy Switching times typ. T ON : 60 µs, typ. T OFF : 250 µs Current consumption E-bus typ. 110 mA Current consumption power contacts typ. 15 mA + load Bit width in the process image 8 outputs Configuration no address or configuration setting Electrical isolation 500 V (E-bus/field potential) Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/vertical Approvals/markings CE, UL Technical data

Availability: regular delivery
