Beckhoff EL2622 | Beckhoff Ethercat Terminals

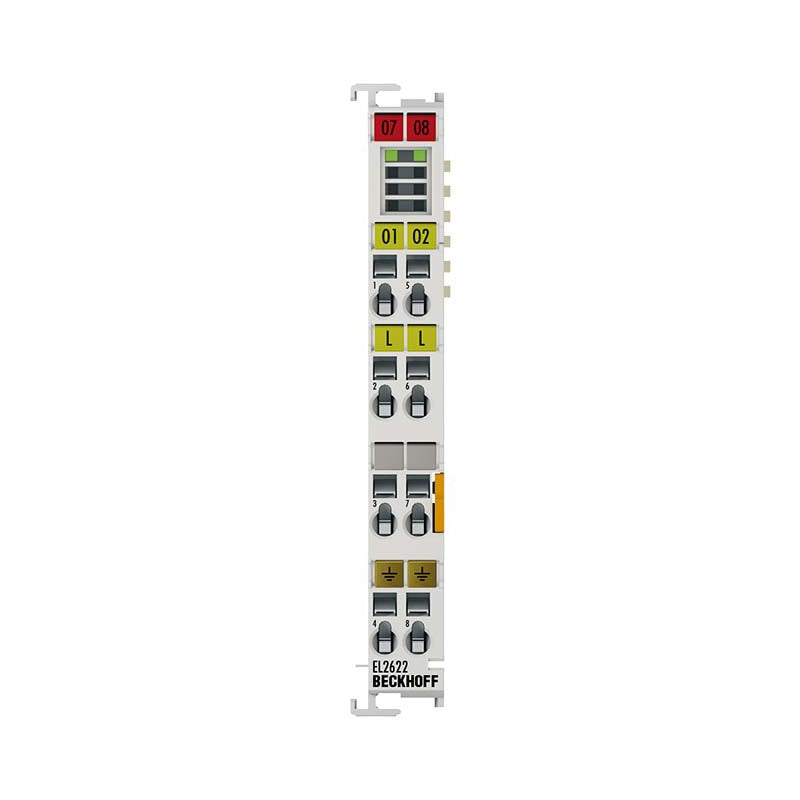

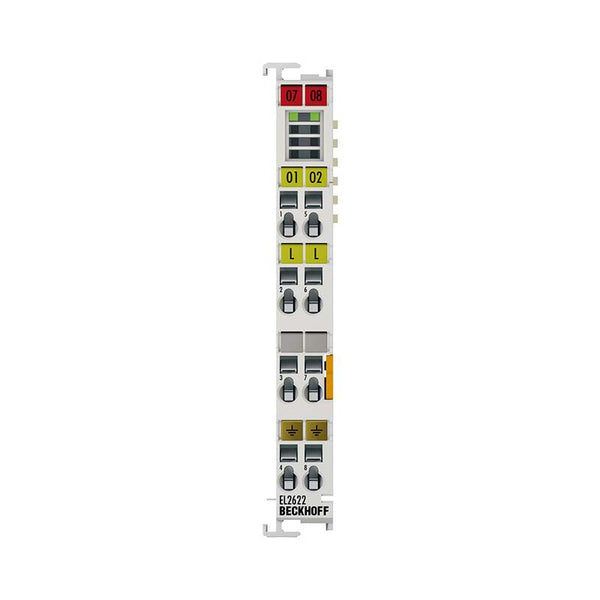

EL2622 | EtherCAT Terminal, 2-channel relay output, 230 V AC, 30 V DC, 5 A, without power contacts

The EL2622 output terminal has two relays, each with a single contact. It is universally applicable for switching mains voltage consumers. The signal state...

Technical Specifications

EL2622 Connection technology relay output Number of outputs 2 x make contacts Nominal voltage 230 V AC/30 V DC Load type ohmic, inductive, lamp load Distributed clocks – Ohmic switching current 5 A AC/DC per channel Minimum permitted load 10 mA at 5 V DC Inductive switching current 2 A AC/DC per channel Lamp test, electronic ballast 4 x 58 W Current consumption E-bus typ. 170 mA Current consumption power contacts – Bit width in the process image 2 outputs Operating cycles mech. (min.) 2 x 10 7 Operating cycles electr. (min.) 1 x 10 5 (5 A/30 V DC) Configuration no address or configuration setting Electrical isolation 500 V (E-bus/field potential) Special features – Weight approx. 50 g Operating temperature -25…+55°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61

Availability: regular delivery
