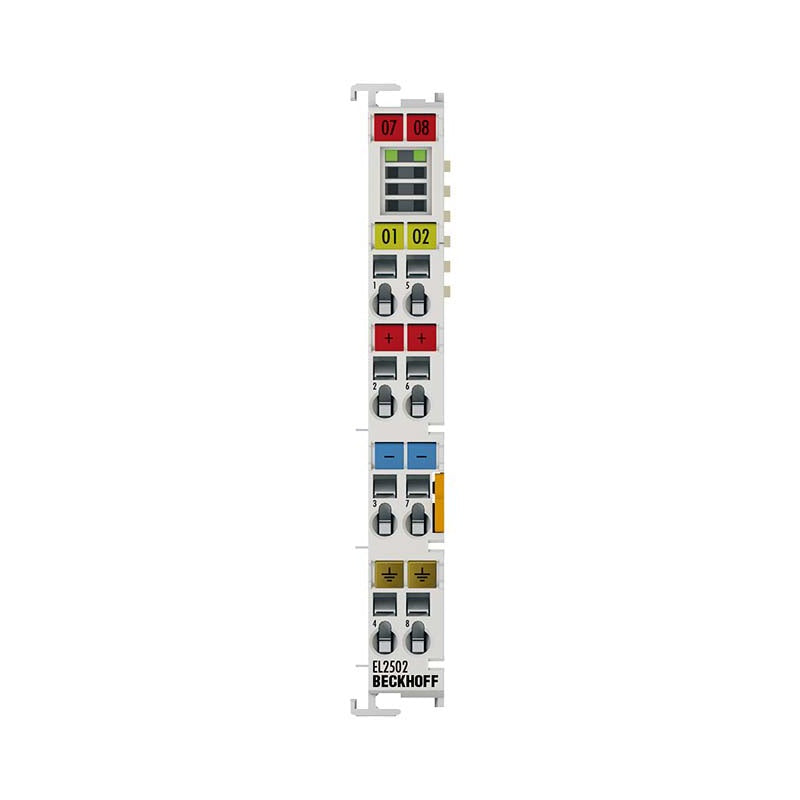

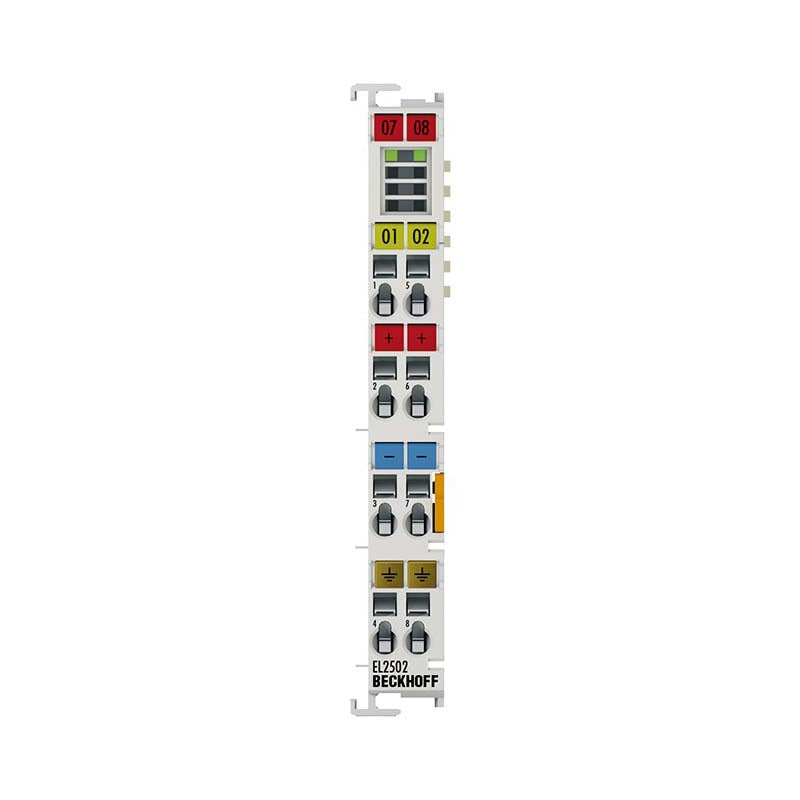

EL2502 | EtherCAT Terminal, 2-channel PWM output, 24 V DC, 0.5 A

The EL2502 output terminal modulates the pulse width of a binary signal, and outputs it electrically isolated from the E-bus. The mark/space ratio is preset...

Technical Specifications

EL2502 Connection technology PWM output, push-pull outputs Number of outputs 2 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Distributed clocks – Max. output current 0.5 A (short-circuit proof) per channel Short-circuit current typ. Base frequency 1 Hz…125 kHz, 250 Hz default Duty cycle 0…100% (pulse duration T ON > 750 ns, pause duration T OFF > 500 ns) Resolution 9…15 bit Reverse polarity protection yes Current consumption E-bus typ. 140 mA Current consumption power contacts typ. 30 mA Bit width in the process image 2 x 16 bit PWM output Configuration via TwinCAT System Manager Electrical isolation 500 V (E-bus/field potential) Special features separate frequency can be set for each channel Weight approx. 50 g Operating temperature -25…+55°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2
