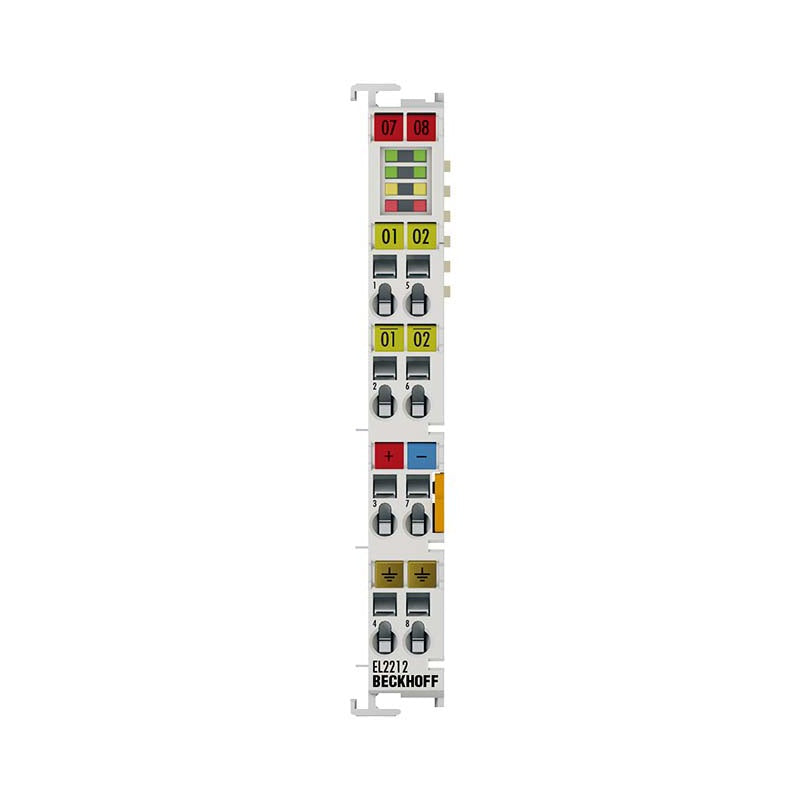

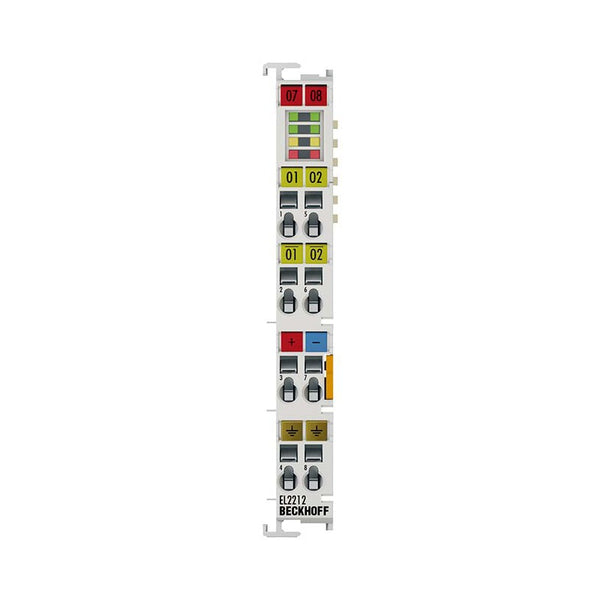

EL2212 | EtherCAT Terminal, 2-channel digital output, 24…72 V DC, 10 A, overexcitation, multi-timestamp

The EL2212 digital output terminal connects the binary control signals from the automation device on to the actuators at the process level with electrical...

Technical Specifications

EL2212 Connection technology 4-wire Number of outputs 2 Nominal voltage 24…72 V DC (-15%/+0%) Load type inductive > 1 mH Timestamp accuracy 10 ns between the channels Timestamp resolution 1 ns Distributed clocks yes Distributed clock accuracy Max. output current peak current: max. 10 A per channel, holding current: 0.2…2.5 A per channel Output stage full bridge (push-pull) Short-circuit current typ. 12 A Reverse polarity protection – Switching times without distributed clocks: typ. T ON /T OFF 20 µs, with distributed clocks: typ. T ON /T OFF Current consumption E-bus typ. 120 mA Current consumption power contacts load-dependent Configuration via TwinCAT System Manager Electrical isolation 500 V (E-bus/field potential) Special features Multi-timestamping, current-controlled outputs can be connected in high-resistance mode. Weight approx. 50 g Operating temperature -25…+55°C Storage temper
