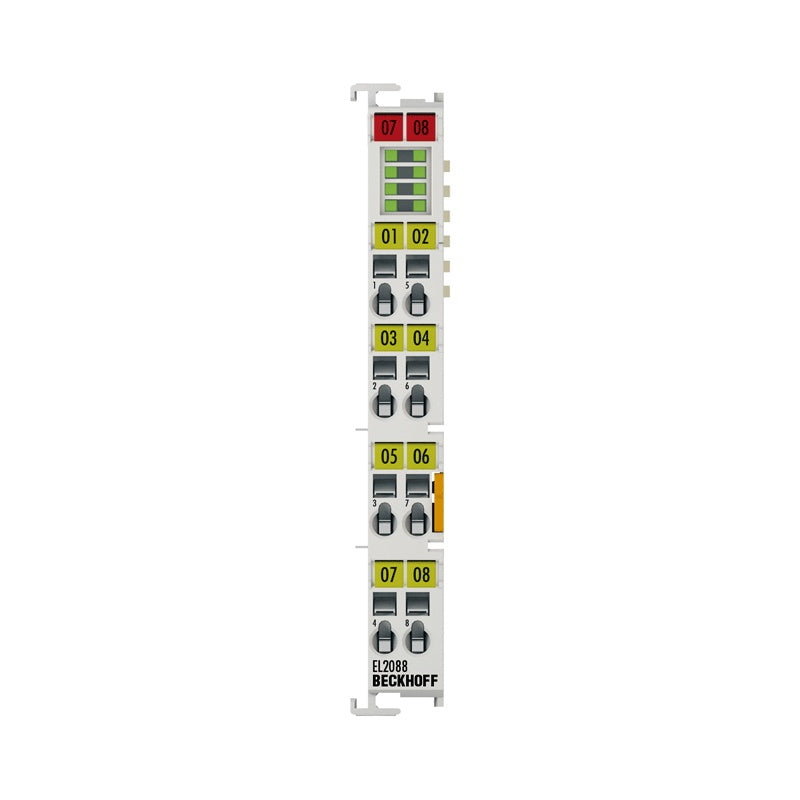

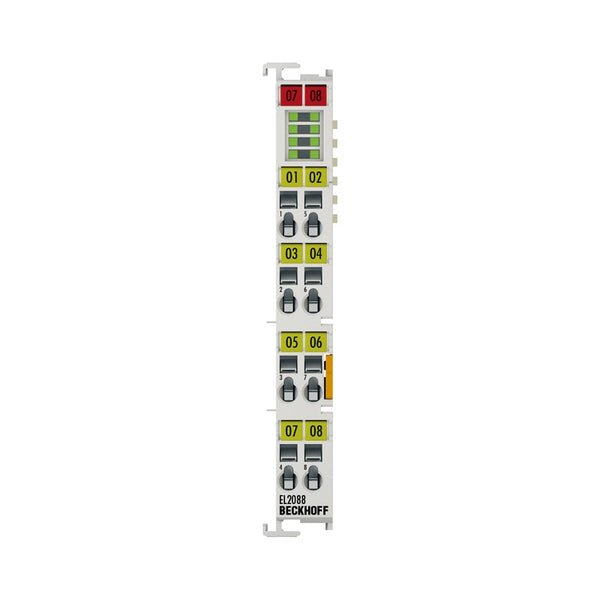

Beckhoff EL2088 | Beckhoff Ethercat Terminals

EL2088 | EtherCAT Terminal, 8-channel digital output, 24 V DC, 0.5 A, ground switching

The EL2088 digital output terminal connects the binary 24 V DC control signals from the automation device on to the actuators at the process level with...

Technical Specifications

EL2088 Connection technology 1-wire Number of outputs 8 Nominal voltage 24 V DC (-15%/+20%) Load type ohmic, inductive, lamp load Distributed clocks – Max. output current 0.5 A (short-circuit proof) per channel, ∑ 3 A Short-circuit current typ. Reverse polarity protection yes Switching-off energy Switching times typ. T ON : 50 µs, typ. T OFF : 200 µs Current consumption E-bus typ. 110 mA Current consumption power contacts typ. 30 mA + load Bit width in the process image 8 outputs Configuration no address or configuration setting Electrical isolation 500 V (E-bus/field potential) Weight approx. 70 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/variable Pluggable wiring le

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
