Beckhoff EL1852 | Beckhoff Ethercat Terminals

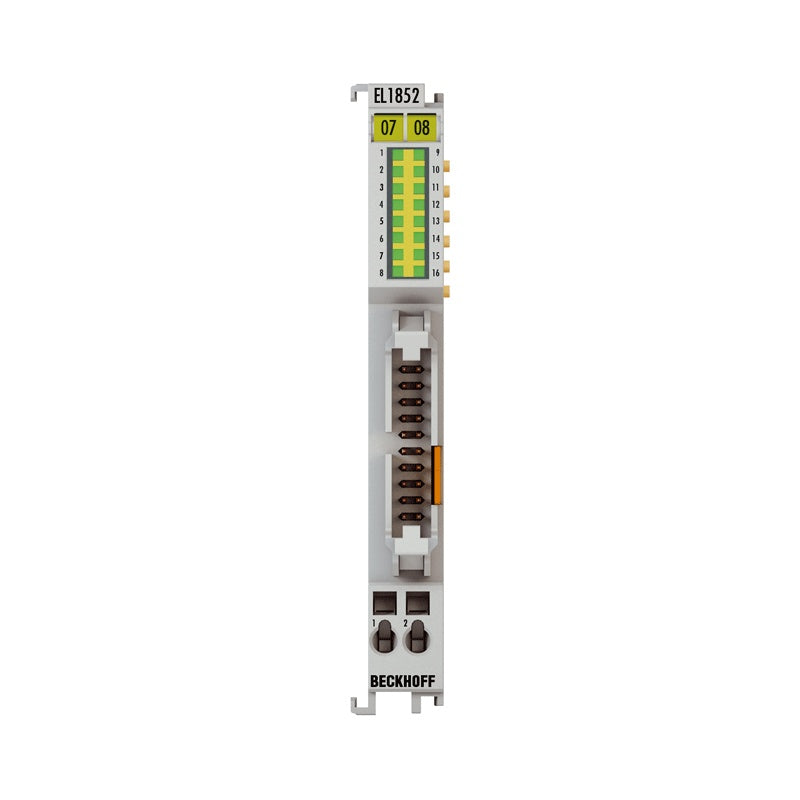

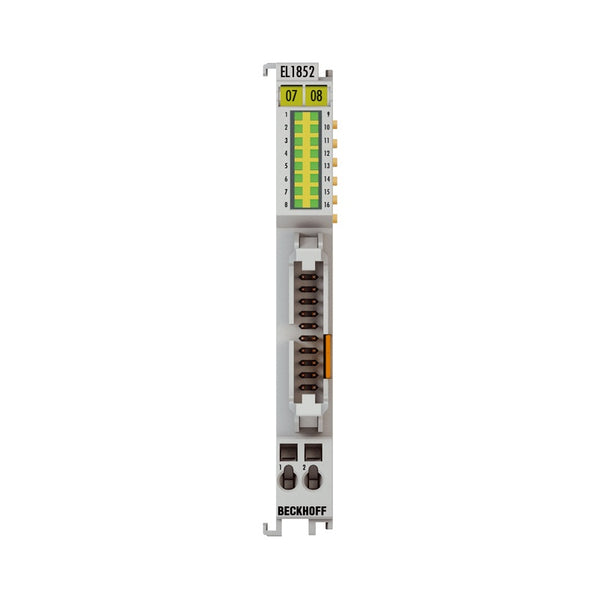

EL1852 | EtherCAT Terminal, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, flat-ribbon cable

The digital EL1852 EtherCAT Terminal combines eight digital inputs and eight digital outputs on a single device. The signal state of the channels is indicated...

Technical Specifications

EL1852 Connection technology flat-ribbon cable Specification EN 61131-2, type 1/3 Number of channels 8 inputs + 8 outputs Nominal voltage 24 V DC (-15%/+20%) Current carrying capacity max. 1 A per connection pin Signal voltage “0” -3…+5 V (EN 61131-2, type 1/3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input current typ. 3 mA (EN 61131-2, type 3) Input filter typ. 3 ms Distributed clocks – Load type ohmic, inductive, lamp load Max. output current 0.5 A per channel Reverse polarity protection yes Switching-off energy Current consumption power contacts 20 mA from the 24 V supply (no power contacts) Switching times typ. T ON : 60 µs, typ. T OFF : 300 µs Current consumption E-bus typ. 100 mA Electrical isolation 500 V (E-bus/field potential) Special features combi EtherCAT Terminal, 8 x output 24 V DC, I max = 0.5 A, load type: ohmic, inductive, lamp load, reverse voltage protection We

Availability: regular delivery
