Beckhoff EL1809 | Beckhoff Ethercat Terminals

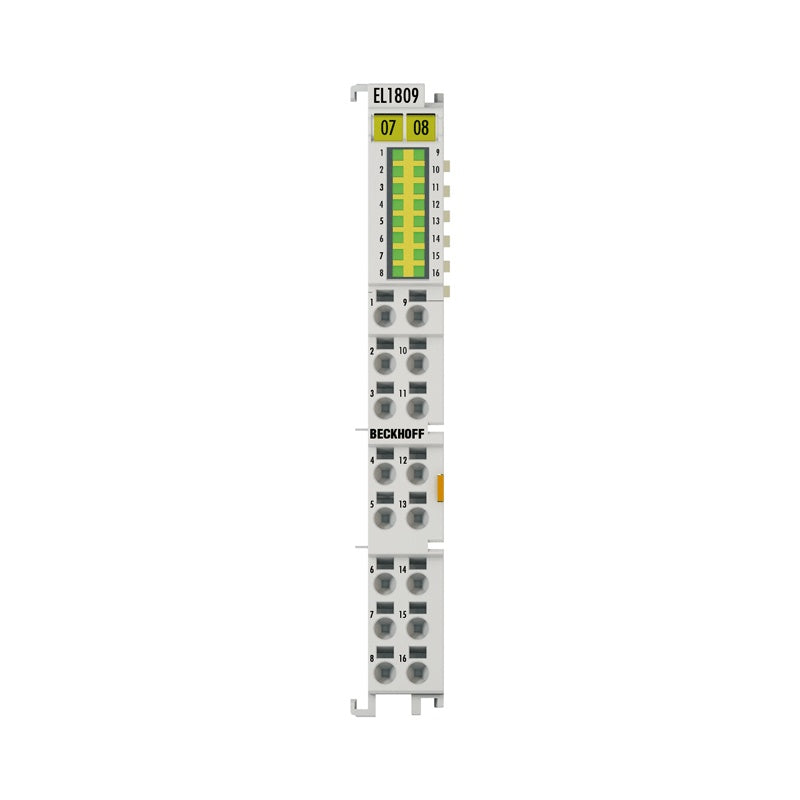

EL1809 | EtherCAT Terminal, 16-channel digital input, 24 V DC, 3 ms

The EL1809 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form,...

Technical Specifications

EL1809 Connection technology 1-wire Specification EN 61131-2, type 1/3 Number of inputs 16 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 1/3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input current typ. 3 mA (EN 61131-2, type 3) Input filter typ. 3 ms Distributed clocks – Current consumption power contacts typ. 4 mA + load Current consumption E-bus typ. 100 mA Electrical isolation 500 V (E-bus/field potential) Configuration no address or configuration setting Special features standard terminal with high number of channels for slow 24 V DC edges, direct plug-in technology Weight approx. 65 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos.

Availability: regular delivery

Place your order before 14:00 for earliest possible shipment handover. With round-the-clock transit operated by our partnered global logistics providers, parcels reach most international destinations following routine customs processing. Normal delivery takes 2–6 business days subject to customs clearance progress.Shipping fees will be charged for all orders under USD 500, and the exact shipping cost will be determined and collected by our logistics carriers. Shipments to remote international regions will incur additional courier surcharges to offset extra cross-border transportation costs.

Factory warranty service is not applicable to this industrial control equipment, and extended warranty packages are not provided for this item.
