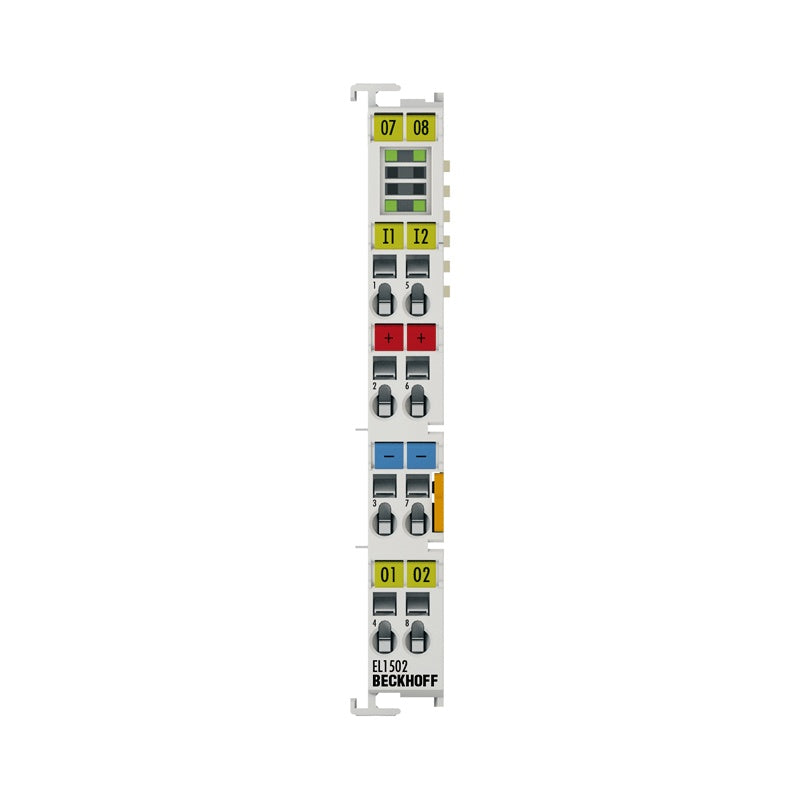

EL1502 | EtherCAT Terminal, 2-channel digital input, counter, 24 V DC, 100 kHz

The EL1502 EtherCAT Terminal is an up/down counter and transmits the counter value in an electrically isolated form to the higher-level automation device...

Technical Specifications

EL1502 Connection technology 1 x up/down counter, 2 x up or down counter Specification EN 61131-2, type 1, “0”: 15 V DC, typ. 5 mA Number of counters 1 or 2 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 1) Signal voltage “1” 15…30 V (EN 61131-2, type 1) Input current typ. 5 mA (EN 61131-2, type 1) Counting frequency max. 100 kHz Distributed clocks yes Max. output current 24 V/0.5 A (short-circuit proof) per channel Current consumption power contacts typ. 14 mA + load Current consumption E-bus typ. 130 mA Counter depth 32 bit Electrical isolation 500 V (E-bus/field potential) Configuration no address setting, configuration via the EtherCAT master Special features set counters, switch outputs Weight approx. 50 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60

Availability: regular delivery
