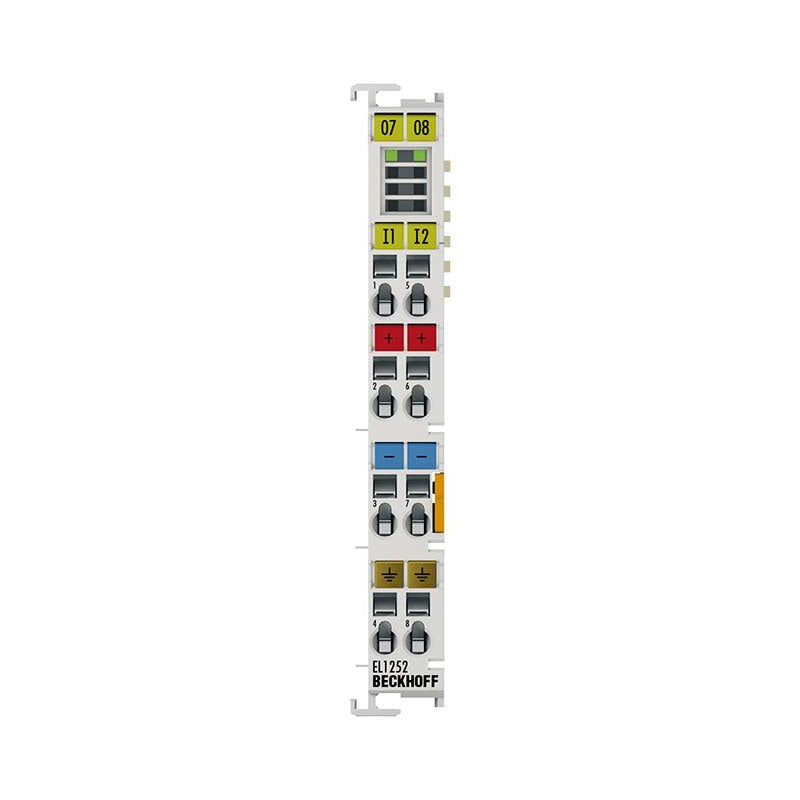

EL1252 | EtherCAT Terminal, 2-channel digital input, 24 V DC, 1 µs, timestamp

The EL1252 digital input terminal acquires the fast binary 24 V control signals from the process level and transmits them, in an electrically isolated ...

Technical Specifications

EL1252 Connection technology 4-wire Specification similar to EN 61131-2, type 3, “0”: -3…5 V DC, “1”: 11…30 V DC, typ. 3 mA input current Number of inputs 2 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (similar to EN 61131-2, type 3) Signal voltage “1” 11…30 V (similar to EN 61131-2, type 3) Input current typ. 3 mA (similar to EN 61131-2, type 3) Input filter typ. Timestamp resolution 1 ns Timestamp accuracy 10 ns (+ input delay) between the channels Input delay T ON /T OFF Distributed clocks yes Distributed clock accuracy Time resolution signal 1 ns Current consumption power contacts – Current consumption E-bus typ. 110 mA Electrical isolation 500 V (E-bus/field potential) Bit width in the process image 2 x input + 2 x 16 byte timestamp Configuration no address or configuration setting Special features timestamping, latch last edge Weight approx. 55 g Operating tempera
