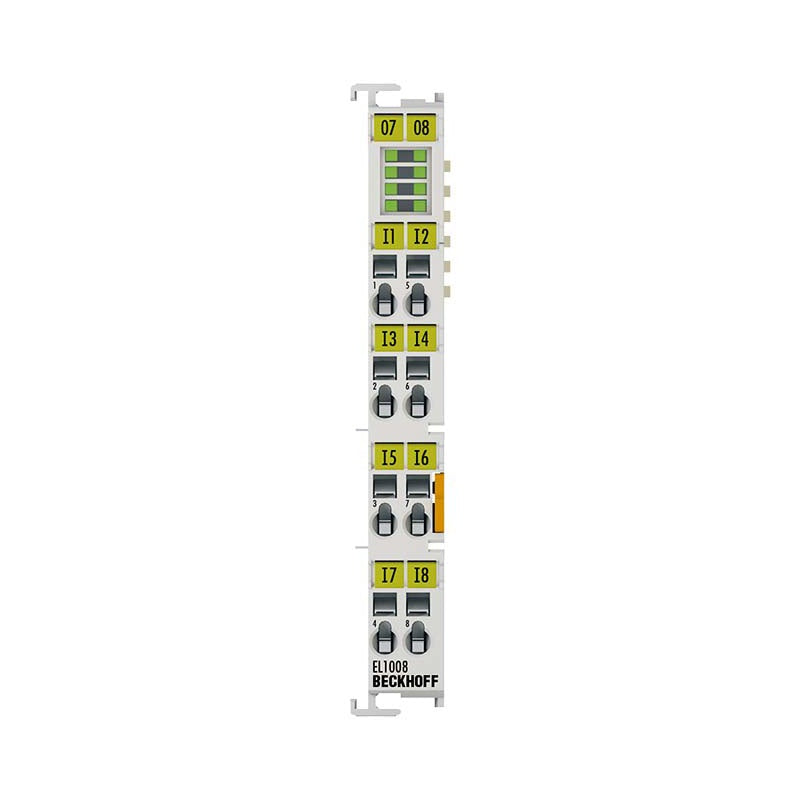

Beckhoff EL1008 | Beckhoff Ethercat Terminals

EL1008 | EtherCAT Terminal, 8-channel digital input, 24 V DC, 3 ms

The EL1008 digital input terminal acquires the binary 24 V control signals from the process level and transmits them, in an electrically isolated form,...

Technical Specifications

EL1008 Connection technology 1-wire Specification EN 61131-2, type 1/3 Number of inputs 8 Nominal voltage 24 V DC (-15%/+20%) Signal voltage “0” -3…+5 V (EN 61131-2, type 3) Signal voltage “1” 11…30 V (EN 61131-2, type 3) Input current typ. 3 mA (EN 61131-2, type 3) Input filter typ. 3 ms Distributed clocks – Current consumption power contacts typ. 2 mA + load Current consumption E-bus typ. 90 mA Electrical isolation 500 V (E-bus/field potential) Configuration no address or configuration setting Special features standard input terminal for bouncing signals (filter 3 ms) Weight approx. 55 g Operating temperature -25…+60°C Storage temperature -40…+85°C Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Protect. rating/installation pos. IP20/see documentation Pluggable wiring le

Availability: regular delivery
