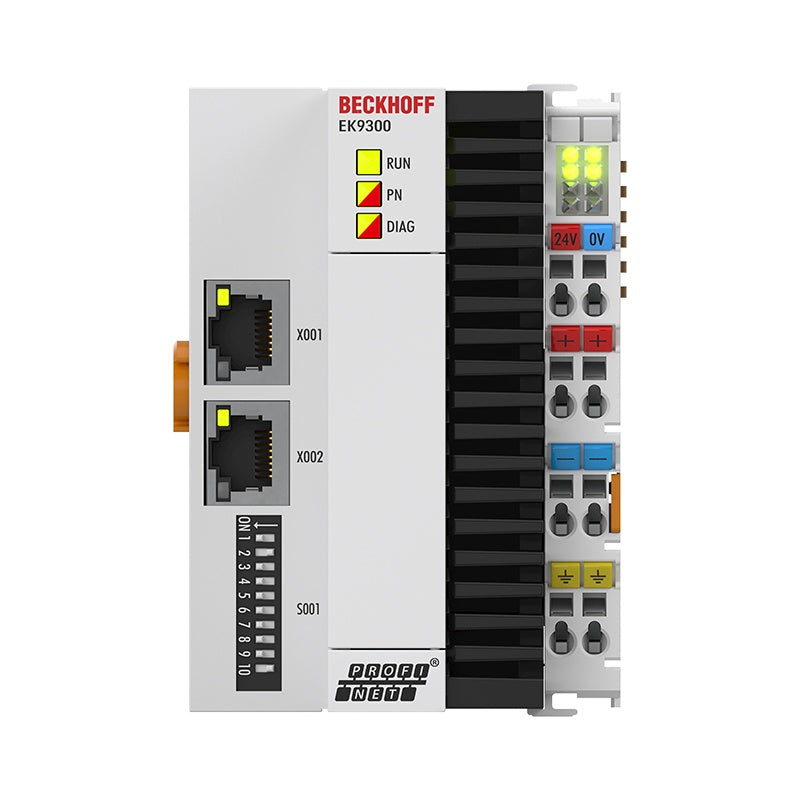

EK9300 | PROFINET RT Bus Coupler

The EK9300 Bus Coupler connects PROFINET RT networks to the EtherCAT Terminals (ELxxxx) as well as the EtherCAT Box modules (EPxxxx) and converts the telegrams...

Technical Specifications

EK9300 Task within EtherCAT system coupling of standard digital and analog EtherCAT Terminals and EtherCAT Box modules to PROFINET RT networks Number of EtherCAT Terminals depending on the process data size Type/number of peripheral signals depending on the process data size Protocol PROFINET RT Data transfer rates 100 Mbit/s Configuration not required Bus interface 2 x RJ45 (switched) Power supply 24 V DC (-15%/+20%) Input current typ. 120 mA + (total E-bus current)/4 Current consumption E-bus up to 2 A Power contacts max. 24 V DC/max. 10 A Electrical isolation 500 V (power contact/supply voltage/Ethernet) Dimensions (W x H x D) 64 mm x 100 mm x 73 mm Operating temperature -25…+60°C Storage temperature -40…+85°C EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4 Relative humidity 95%, no condensation Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27 Protect. rat

Availability: regular delivery (not recommended for new projects) | recommended alternative: EK9320
